Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric S40-DTN12-90

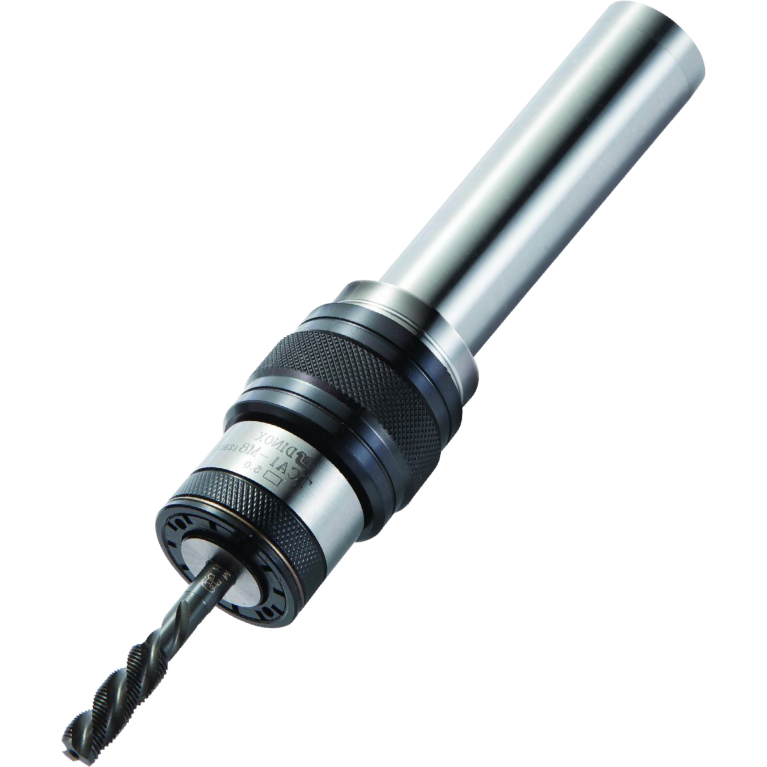

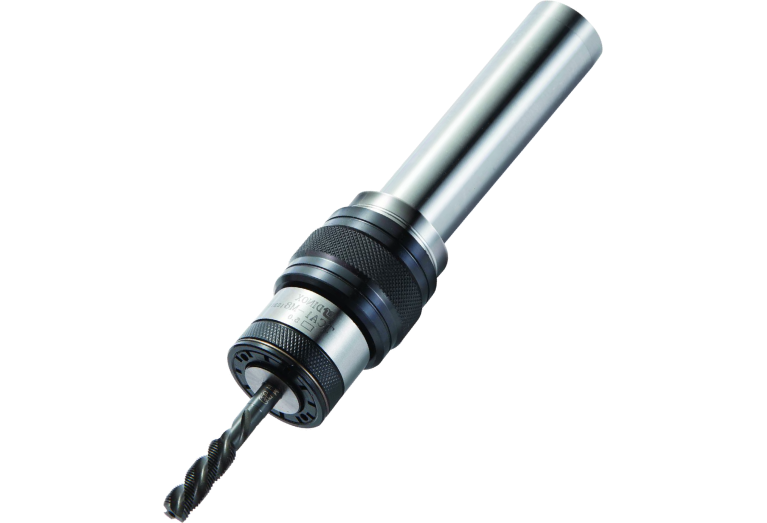

S40-DTN12-90

S40-DTN12-90 S40-DTN12-90 S40-DTN12-90

S40-DTN12-90

Korloy
Артикул: 6-01-019555
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
32 mm
BD Body diameter 2
36 mm
BLDEV Balancing device
0
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SWB
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0190
DCONWS Diameter
19 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
ZYL04000105
FamilyProducts
S-DTN
HAND Cutting direction
N - Neutral
ID Technical product number
6-01-019555
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LCOMP Length compensation for compression
4 mm
LF Functional length
65 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SWB Quick change adapter BILZ
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0190
LOC-01 DCONWS Diameter
19 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SWB01900105
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04000105
LPR Protruding length
90 mm
LTENS Length compensation for tension
10 mm
Name Identifying order number
S40-DTN12-90
OAL Overall length
170 mm
PENDP Pendulum property
0 - Without
Rotation Rotation indicator
1 - rotating tool
