Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric PH232/20/05

PH232/20/05

Артикул: PH232/20/05

В наличии

В корзину

Описание

Характеристики

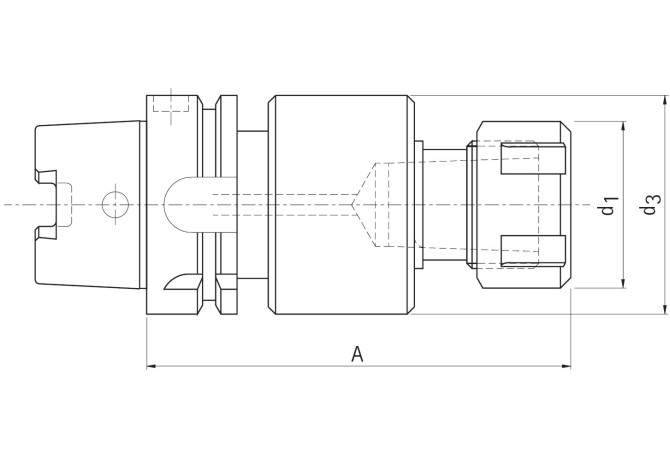

BD Body diameter

42 mm

BD Body diameter 2

59 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SZD

COMPC Company code

MP - Mapal

CZCWS Connection size code

0250

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/1/2009

DIN

HSK06300195

FamilyProducts

Spannzangen-Pendelhalter für Innenkühl. (HI-Q/ERC)

ID Technical product number

PH232/20/05

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZD Collet adapter DIN / ISO

LOC-01 CZCWS Connection size code

0250

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD02500295

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ML-ER-25

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

LPR Protruding length

127 mm

Name Identifying order number

PH232/20/05

Rotation Rotation indicator

1 - rotating tool
