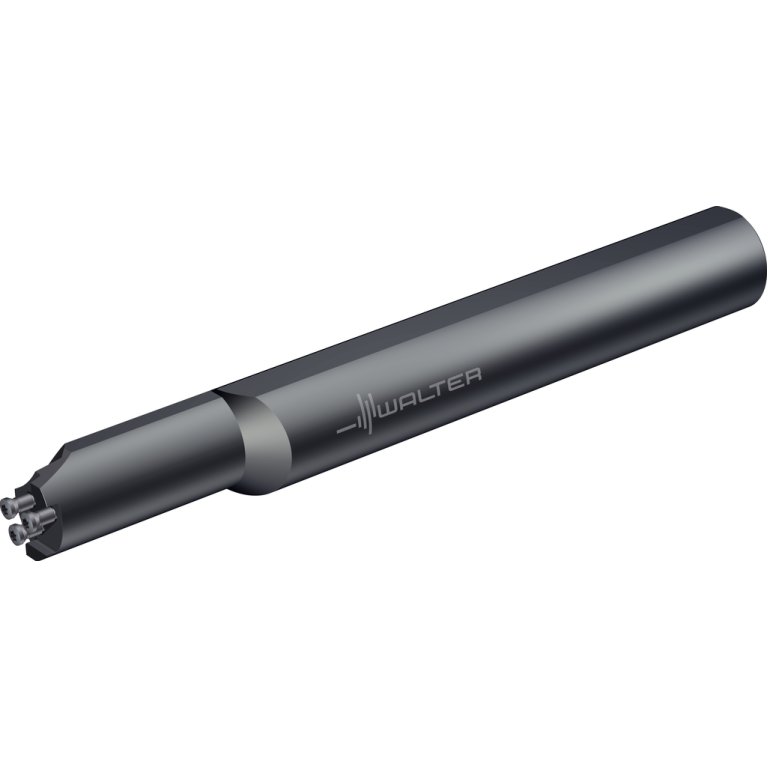

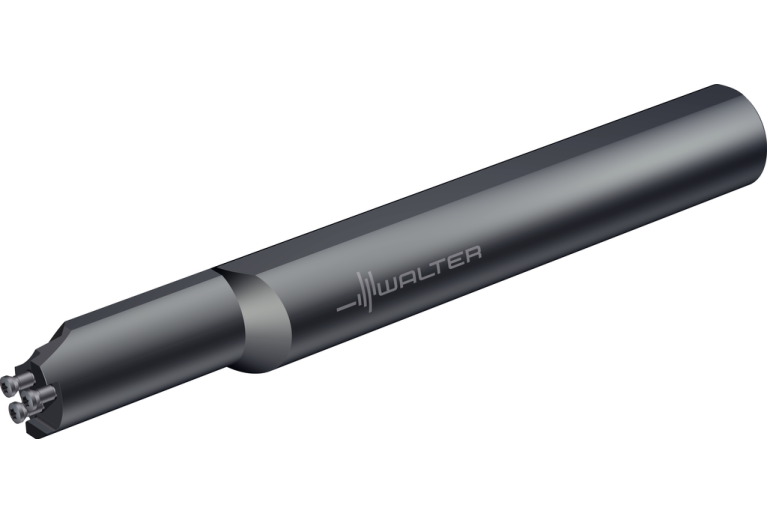

MSS-I40L90-2,5D-E

MSS-I40L90-2,5D-E MSS-I40L90-2,5D-E MSS-I40L90-2,5D-E

MSS-I40L90-2,5D-E

Walter
Артикул: 5029054
В наличии
В корзину
Описание
Характеристики
CCFWS Form
05
CCSWS Style
5
CCTWS Type
PMA
CCUWS Unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
L040
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL20000125
FamilyProducts
Boring bar – modular MSS...I...90-2.5
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5029054
Interface codes
J6 / J61
ISO
ZYL01S2000$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LF Functional length
112.5 mm
LOC-01 CCFWS Form
05
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
PMA Prism mounting
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
L040
LOC-01 ISO
PMA05CL040****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
PMAL0400585
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
2000
LOC-03 DCONMS Diameter
50.8 mm
LOC-03 ISO
ZYL01S2000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL20000125
LPR Protruding length
118 mm
Name Identifying order number
MSS-I40L90-2,5D-E
OAL Overall length
349.6 mm
RADW Radial width
43.8 mm
WF Functional width
8.5 mm
WT Weight of item
4.822 kg
