Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric MSS-I32R90-1,5D-E

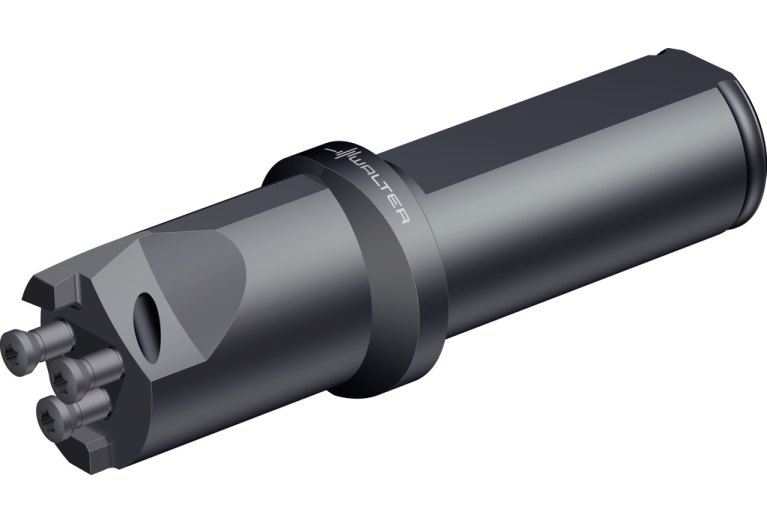

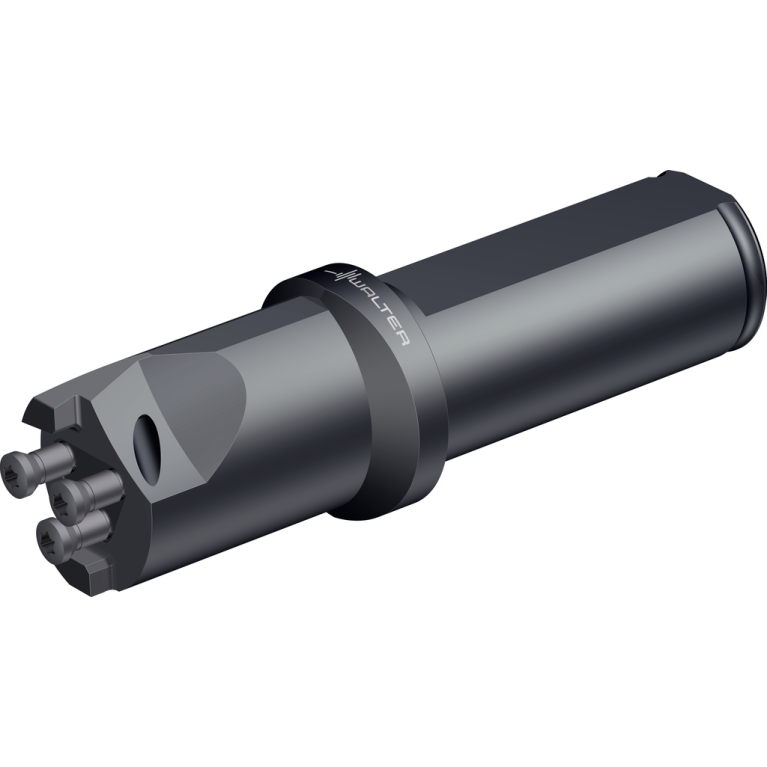

MSS-I32R90-1,5D-E

MSS-I32R90-1,5D-E MSS-I32R90-1,5D-E MSS-I32R90-1,5D-E

MSS-I32R90-1,5D-E

Walter
Артикул: 5029071
В наличии
В корзину
Описание
Характеристики
CCFWS Form
05
CCSWS Style
5
CCTWS Type
PMA
CCUWS Unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
R032
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL15000125
FamilyProducts
Boring bar – modular MSS...I...90-1.5
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5029071
Interface codes
J6 / J61
ISO
ZYL01S1500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LF Functional length
53.1 mm
LOC-01 CCFWS Form
05
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
PMA Prism mounting
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
R032
LOC-01 ISO
PMA05CR032****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
PMAR0320585
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 ISO
ZYL01S1500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL15000125
LPR Protruding length
58.6 mm
LS Shank length
60 mm
Name Identifying order number
MSS-I32R90-1,5D-E
OAL Overall length
118.6 mm
RADW Radial width
35 mm
WF Functional width
2.007 mm
WT Weight of item
0.739 kg
