Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric MSS-I16L90-2,5D-N

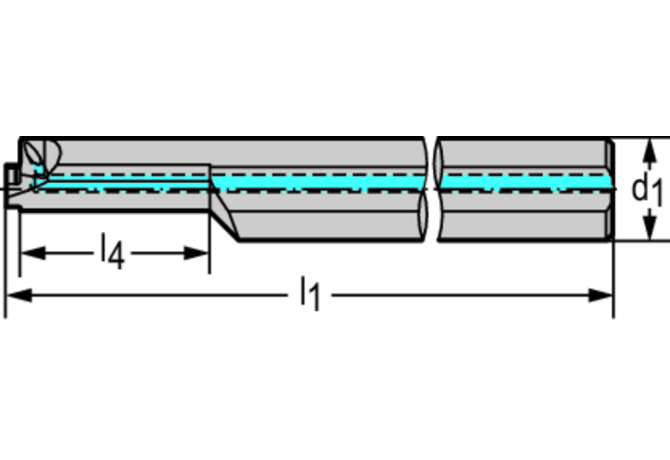

MSS-I16L90-2,5D-N

MSS-I16L90-2,5D-N MSS-I16L90-2,5D-N MSS-I16L90-2,5D-N

MSS-I16L90-2,5D-N

Walter
Артикул: 5009530
В наличии
В корзину
Описание
Характеристики
CCFWS Form
05
CCSWS Style
5
CCTWS Type
PMA
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
L016
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02000115
FamilyProducts
Boring bar – modular MSS...I...90-2.5
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5009530
Interface codes
J6 / J61
ISO
ZYL01G2000$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LF Functional length
45.5 mm
LOC-01 CCFWS Form
05
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
PMA Prism mounting
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
L016
LOC-01 ISO
PMA05CL016****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
PMAL0160595
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 ISO
ZYL01G2000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000115
LPR Protruding length
49 mm
LS Shank length
50 mm
Name Identifying order number
MSS-I16L90-2,5D-N
OAL Overall length
179.7 mm
RADW Radial width
17.8 mm
WF Functional width
4.5 mm
WT Weight of item
0.398 kg
