Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric MM S-A-H004-ER25-T06

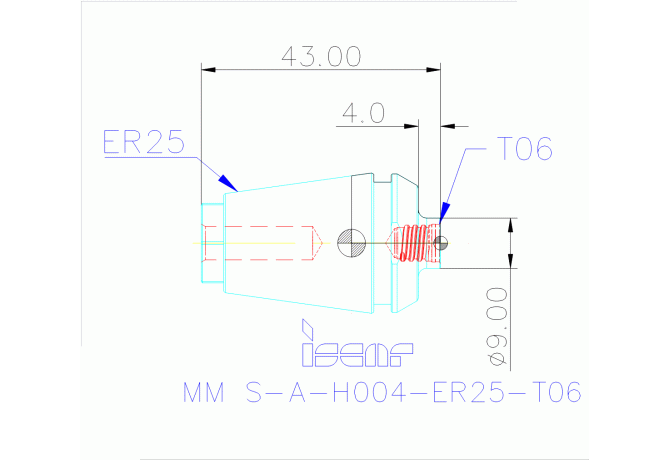

MM S-A-H004-ER25-T06

MM S-A-H004-ER25-T06 MM S-A-H004-ER25-T06

MM S-A-H004-ER25-T06

Iscar
Артикул: 3106242
В наличии
В корзину
Описание
Характеристики
BD Body diameter
9 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SAI
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0060
DCP Data chip provision
0 - Without data chip
Delivery state valid from
9/1/2015
DIN
SZD02500285
FamilyProducts
Shank for MULTI-MASTER Solid Carbide Head
HAND Cutting direction
R - Right
ID Technical product number
3106242
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
4 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SAI Screw mounting ISCAR
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0060
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAI00600105
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
IS-T06
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SZD Collet adapter DIN / ISO
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0250
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SZD02500285
LPR Protruding length
4 mm
Name Identifying order number
MM S-A-H004-ER25-T06
OAL Overall length
44.6 mm
