Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric MAS-BT-ADB50-WE06-63-V

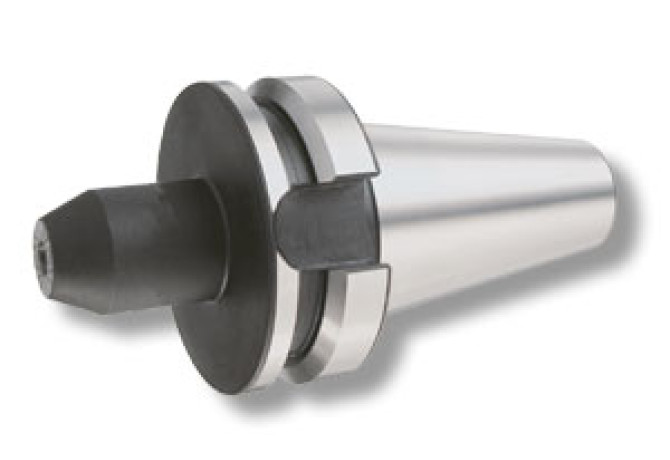

MAS-BT-ADB50-WE06-63-V

Артикул: MAS-BT-ADB50-WE06-63-V

В наличии

В корзину

Описание

Характеристики

BD Body diameter

25 mm

BLQ Balance quality code

G6.3

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0060

DCONWS Diameter

6 mm

DCP Data chip provision

0 - Without data chip

DIN

SKG05005795

FamilyProducts

Weldon shank adapter

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0060

LOC-01 DCONWS Diameter

6 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00601015

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05005795

LPR Protruding length

63 mm

Name Identifying order number

MAS-BT-ADB50-WE06-63-V

RPMX Rotational speed maximum

8000 1/min

TCDCON ISO-tolerance class connection bore diameter
