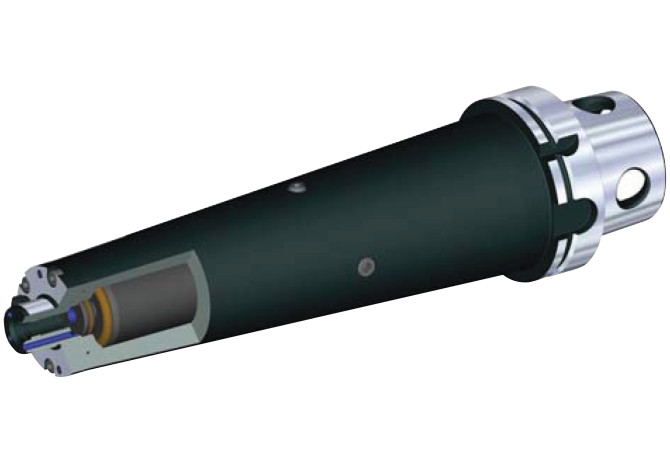

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric KM4X100TDSMC27320M

KM4X100TDSMC27320M

KM4X100TDSMC27320M KM4X100TDSMC27320M KM4X100TDSMC27320M

KM4X100TDSMC27320M

Widia
Артикул: 4169584
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible

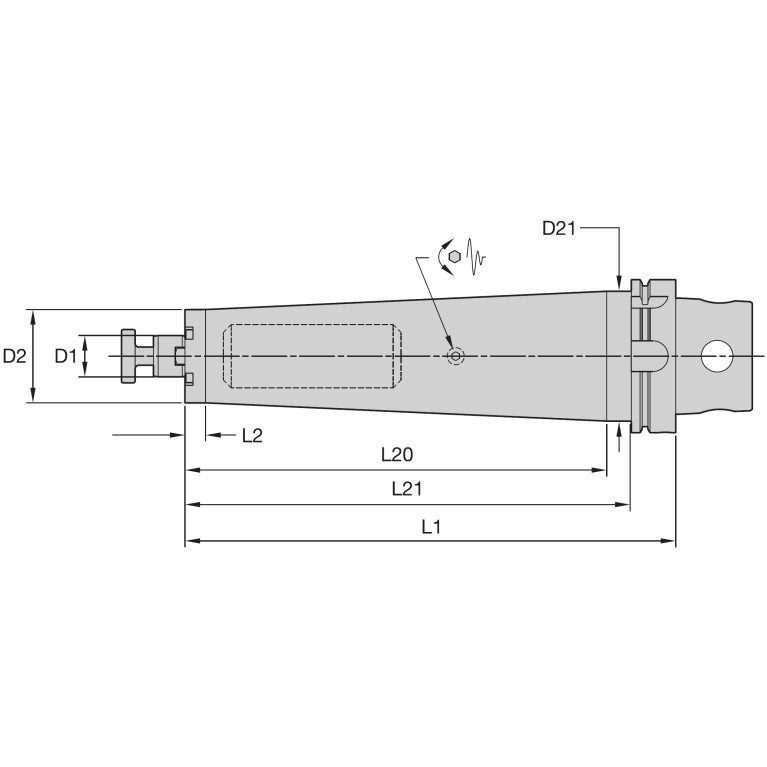

BD Body diameter
61 mm
BD Body diameter 2
85 mm
BLDEV Balancing device
1
CCFWS Form
02
CCONWS Connection count workpiece side
1
CCTWS Type
FDA
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
WI - Widia
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0270
DCONWS Diameter
27 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
8/5/2012
DF Flange diameter
100 mm
DIN
KMT10000595
FamilyProducts
Einstellbarer schwingungsged. Aufsteckfräserdorn
HAND Cutting direction
N - Neutral
ID Technical product number
4169584
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
13.5 mm
LB Length 2
291 mm
LOC-01 CCFWS Form
02
LOC-01 CCTWS Type
FDA Milling arbor mounting
LOC-01 CZCWS Size code
0270
LOC-01 DCONWS Diameter
27 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02700200
LOC-03 CCFMS Form
05
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
KMT KM connection KENNAMETAL / UTS connection WIDIA
LOC-03 CZCMS Size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KMT10000595
LPR Protruding length
320 mm
Name Identifying order number
KM4X100TDSMC27320M
Rotation Rotation indicator
1 - rotating tool
