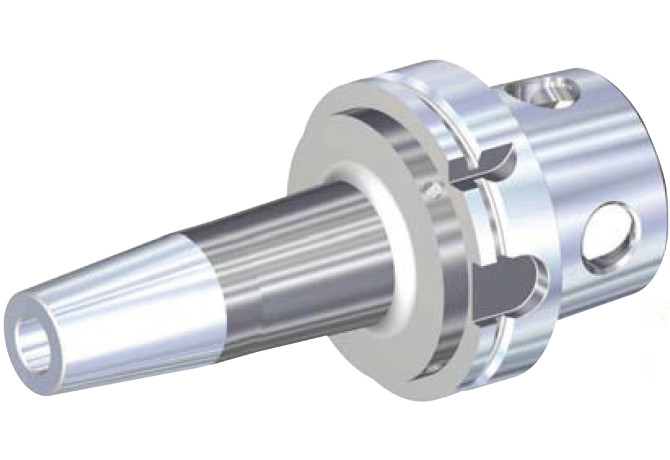

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric KM4X100HPVTT06085M

KM4X100HPVTT06085M

Артикул: 4156046

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

2 - Axial adjustment possible

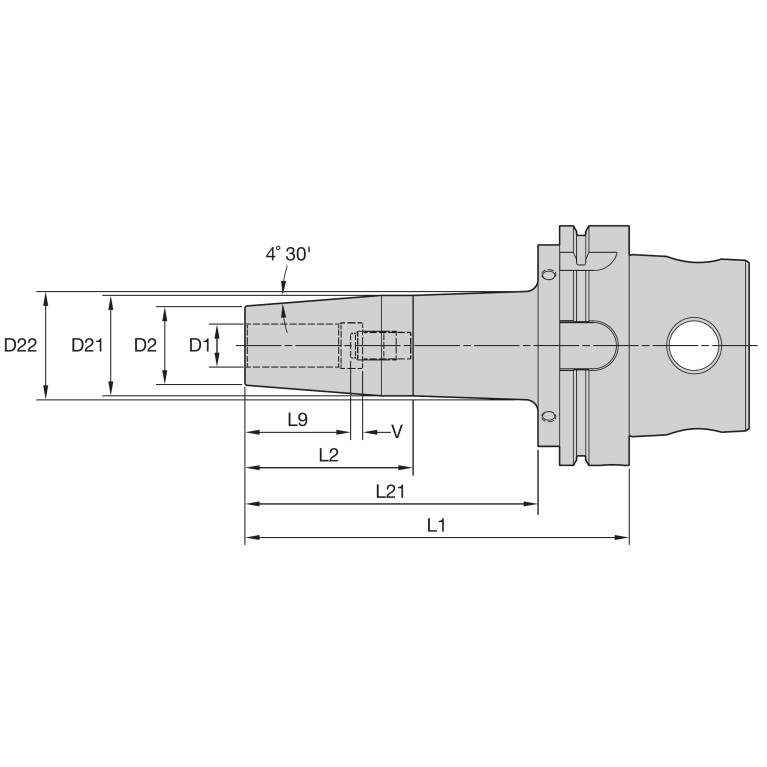

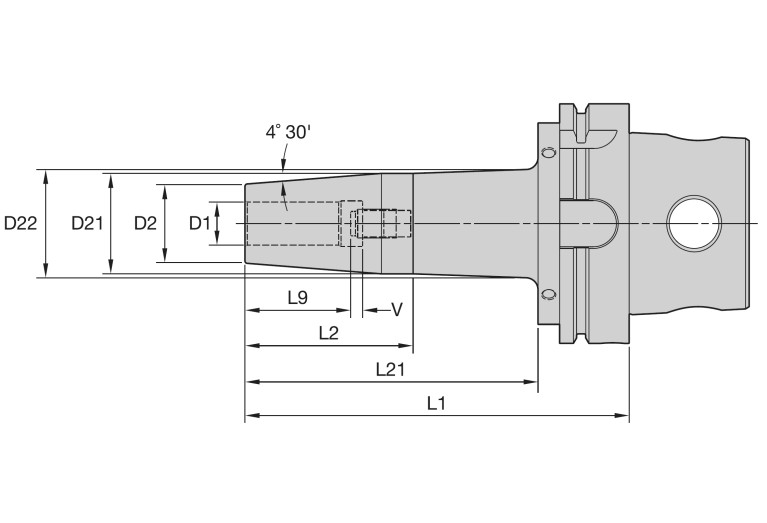

BD Body diameter

21 mm

BD Body diameter 2

27 mm

BLDEV Balancing device

BLQ Balance quality code

G2.5

CCFWS Form

CCONWS Connection count workpiece side

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

WI - Widia

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0060

DCONWS Diameter

6 mm

DCONWSLD Connection diameter lower deviation

-0.008 mm

DCONWSUD Connection diameter upper deviation

0 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

8/5/2012

DF Flange diameter

100 mm

DIN

KMT10000595

FamilyProducts

Schrumpfspannfutter für allgemeine Bearbeitungen

HAND Cutting direction

N - Neutral

ID Technical product number

4156046

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

56 mm

LB Length 2

122 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0060

LOC-01 DCONWS Diameter

6 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00600115

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

KMT KM connection KENNAMETAL / UTS connection WIDIA

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KMT10000595

LPR Protruding length

85 mm

LSCN Clamping length minimum

26 mm

LSCX Clamping length maximum

36 mm

Name Identifying order number

KM4X100HPVTT06085M

Rotation Rotation indicator

1 - rotating tool

RPMX Rotational speed maximum

15000 1/min

TCDCON ISO-tolerance class connection bore diameter
