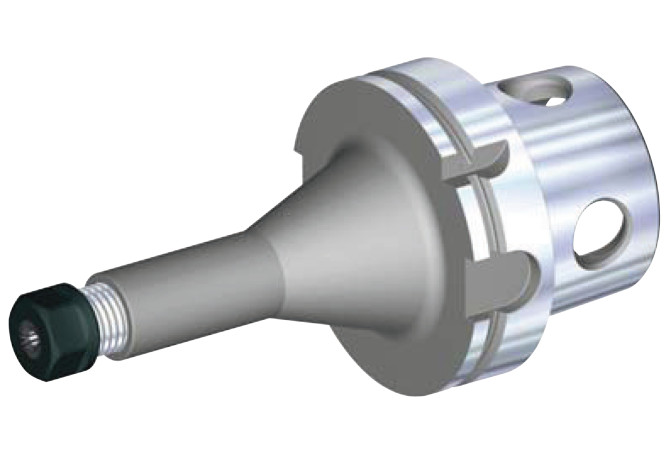

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric KM4X100ER16100M

KM4X100ER16100M

KM4X100ER16100M KM4X100ER16100M KM4X100ER16100M

KM4X100ER16100M

Widia
Артикул: 4159999
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BLDEV Balancing device
0
CCFWS Form
02
CCONWS Connection count workpiece side
1
CCTWS Type
SZD
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
WI - Widia
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0160
DCP Data chip provision
1 - With data chip
Delivery state valid from
8/5/2012
DF Flange diameter
100 mm
DIN
KMT10000595
DLN Diameter lock nut
28 mm
FamilyProducts
ER-Spannzangenfutter
HAND Cutting direction
N - Neutral
ID Technical product number
4159999
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Form
02
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CZCWS Size code
0160
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01600215
LOC-03 CCFMS Form
05
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
KMT KM connection KENNAMETAL / UTS connection WIDIA
LOC-03 CZCMS Size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KMT10000595
LPR Protruding length
100 mm
LSCN Clamping length minimum
32 mm
LSCX Clamping length maximum
85 mm
Name Identifying order number
KM4X100ER16100M
Rotation Rotation indicator
1 - rotating tool
