Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric KDP-HSK63-FMC27-210

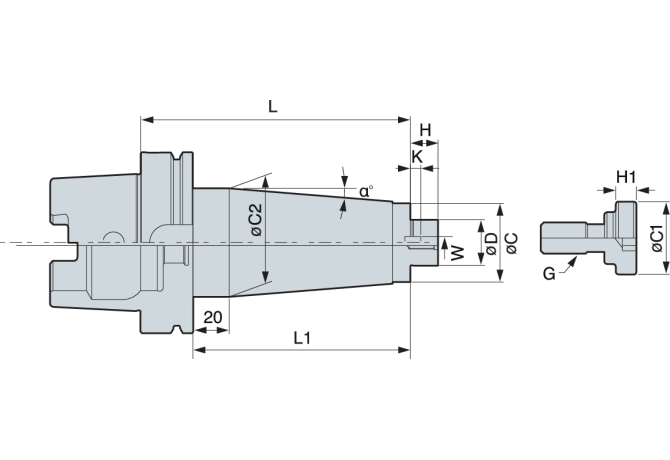

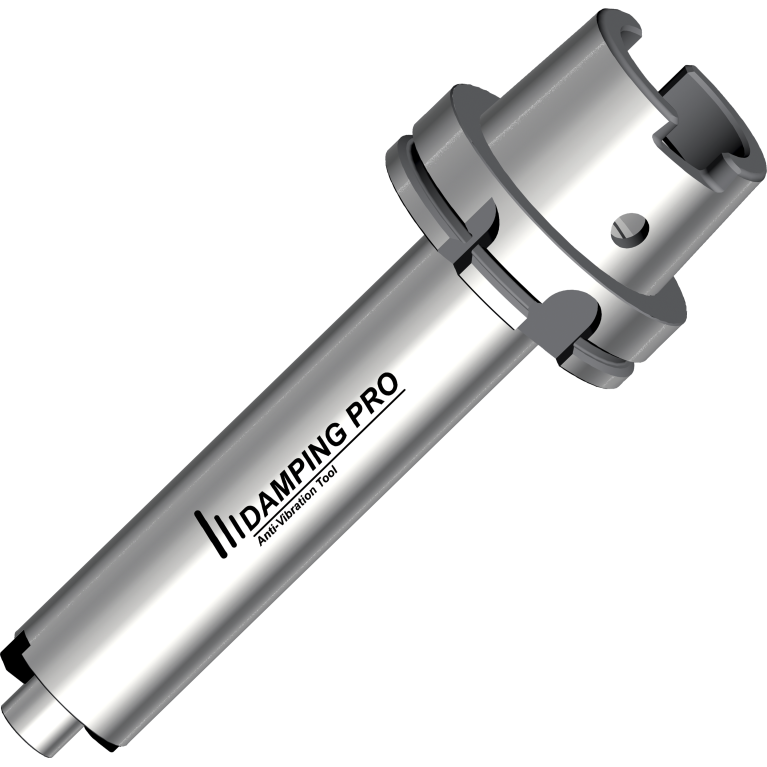

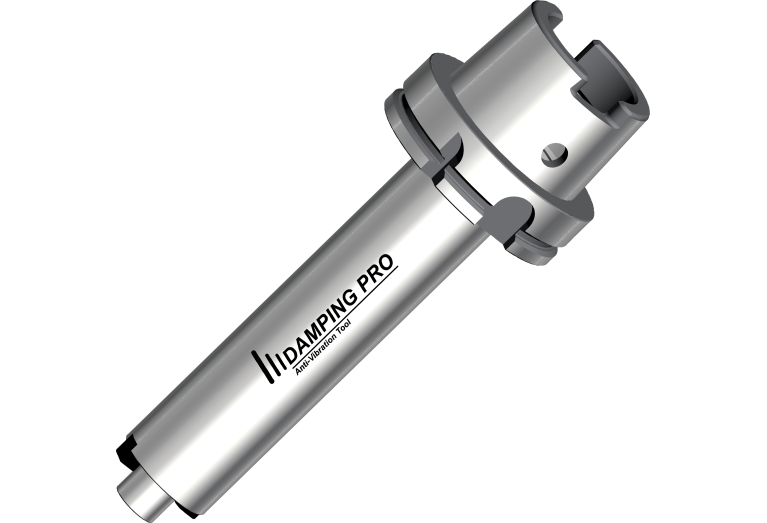

KDP-HSK63-FMC27-210

KDP-HSK63-FMC27-210 KDP-HSK63-FMC27-210 KDP-HSK63-FMC27-210

KDP-HSK63-FMC27-210

Korloy
Артикул: KDP-HSK63-FMC27-210
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
60 mm
BLDEV Balancing device
0
CCFWS Connection code form
11
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0270
DCONWS Diameter
27 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
HSK06300185
FamilyProducts
KDP-HSK-FMC
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
184 mm
LB Length 2
184 mm
LF Functional length
210 mm
LOC-01 CCFWS Connection code form
11
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0270
LOC-01 DCONWS Diameter
27 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02701100
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300185
LPR Protruding length
210 mm
LSCN Clamping length minimum
21 mm
LSCX Clamping length maximum
14.7 mm
Name Identifying order number
KDP-HSK63-FMC27-210
PENDP Pendulum property
0 - Without
Rotation Rotation indicator
1 - rotating tool
STDNO Standard
DIN69893-1, ISO 1216
WT Weight of item
5.53 kg
