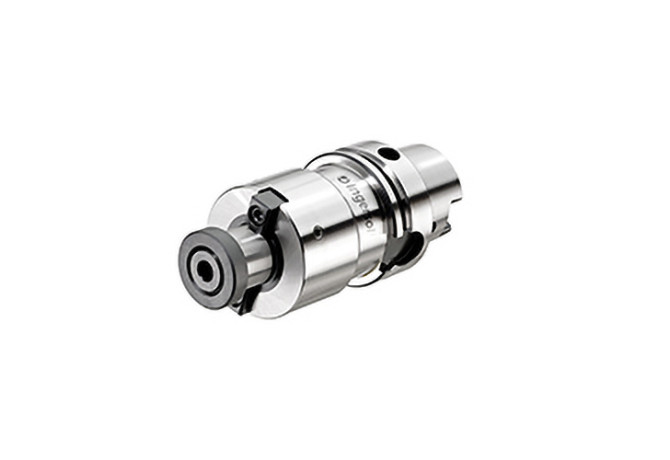

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSKA100FM40SA100

HSKA100FM40SA100

HSKA100FM40SA100 HSKA100FM40SA100 HSKA100FM40SA100 HSKA100FM40SA100

HSKA100FM40SA100

Ingersoll
Артикул: 4553603
В наличии
В корзину
Описание
Характеристики
BD Body diameter 2
89 mm
CCFWS Connection code form
22
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0400
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
HSK10000185
FamilyProducts
HSK-A63/100 Shell end mill arbors big collar
HAND Cutting direction
N - Neutral
ID Technical product number
4553603
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LF Functional length
100 mm
LOC-01 CCFWS Connection code form
22
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0400
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA04002200
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000185
LSCN Clamping length minimum
27 mm
LSCX Clamping length maximum
27 mm
Name Identifying order number
HSKA100FM40SA100
WT Weight of item
5.4 kg
