Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSK63A-NPM20-100

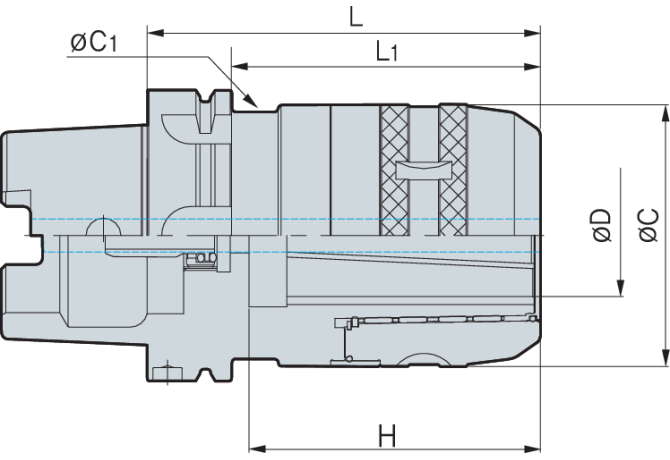

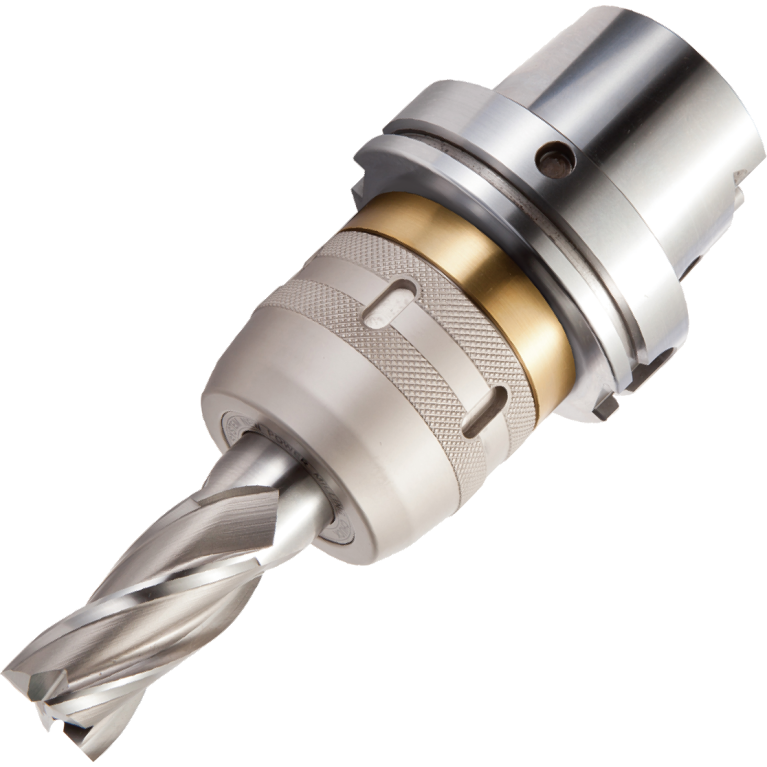

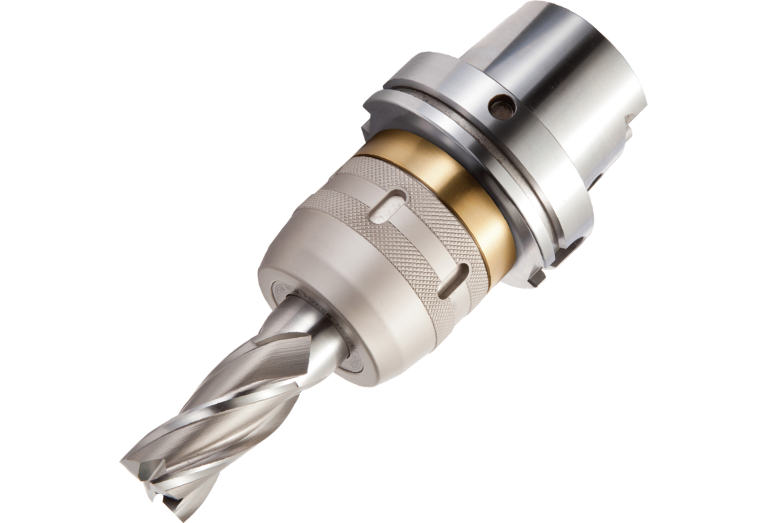

HSK63A-NPM20-100

HSK63A-NPM20-100 HSK63A-NPM20-100 HSK63A-NPM20-100

HSK63A-NPM20-100

Korloy
Артикул: 6-01-009930
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
54 mm
BD Body diameter 2
54 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0200
DCONWS Diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DF Flange diameter
55 mm
DIN
HSK06300185
FamilyProducts
HSK-NPM
HAND Cutting direction
N - Neutral
ID Technical product number
6-01-009930
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
74 mm
LF Functional length
100 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0200
LOC-01 DCONWS Diameter
20 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
KOR-C20
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0200
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300185
LPR Protruding length
100 mm
LSCX Clamping length maximum
75 mm
Name Identifying order number
HSK63A-NPM20-100
PENDP Pendulum property
0 - Without
Rotation Rotation indicator
1 - rotating tool
STDLET Standard letter to the standard number
1
STDNO Standard
ISO12164
WT Weight of item
1.7 kg
