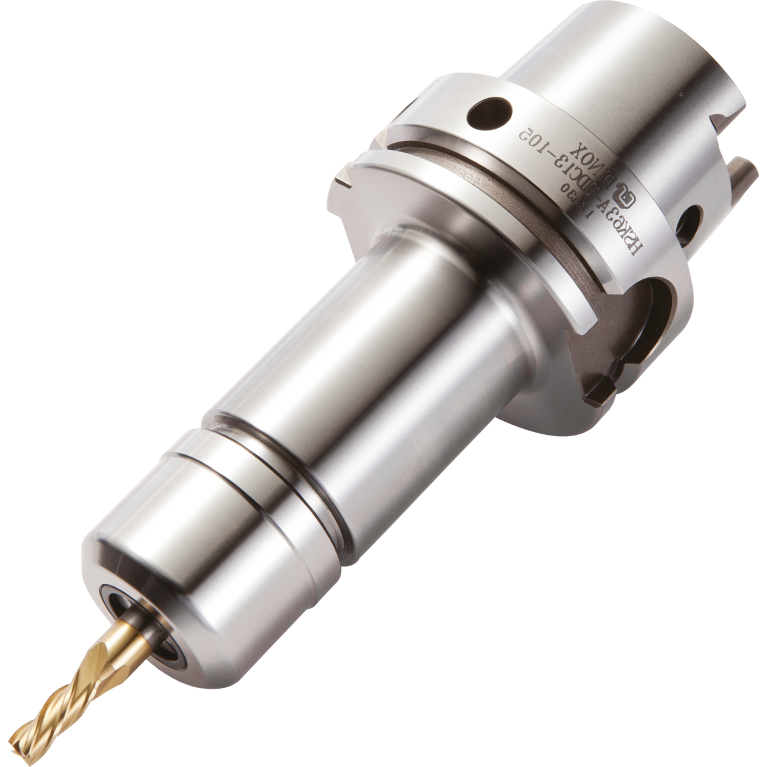

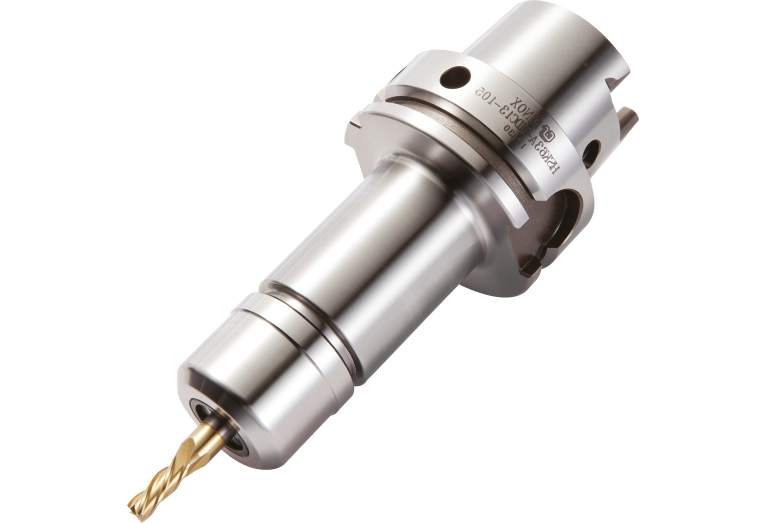

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSK63A-HDC10-90

HSK63A-HDC10-90

HSK63A-HDC10-90 HSK63A-HDC10-90 HSK63A-HDC10-90

HSK63A-HDC10-90

Korloy
Артикул: 6-01-009222
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
30 mm
BD Body diameter 2
31 mm
BLDEV Balancing device
1
BLQ Balance quality code
G2.5
CCFWS Connection code form
02
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
9
CNSC Coolant entry style code
4 - With Coolant entry, axial on hole circle
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
4 - With Coolant exit, axial on hole circle
CZCWS Connection size code
0160
DCONWS Diameter
1 mm
DCONXWS Connection diameter max
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
HSK06300195
FamilyProducts
HSK-HDC, Wuchteinrichtung, voreingestellt
HAND Cutting direction
N - Neutral
ID Technical product number
6-01-009222
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Length 2
64 mm
LF Functional length
90 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
1 mm
LOC-01 DCONXWS Connection diameter max
10 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01600295
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LPR Protruding length
90 mm
LSCX Clamping length maximum
45 mm
Name Identifying order number
HSK63A-HDC10-90
PENDP Pendulum property
0 - Without
Rotation Rotation indicator
1 - rotating tool
RPMX Rotational speed maximum
25000 1/min
WT Weight of item
1 kg
