Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSK63A-FMC40-60

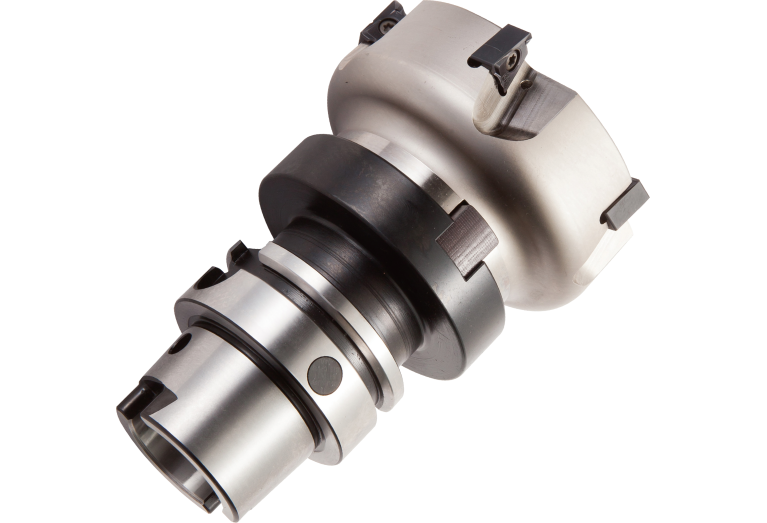

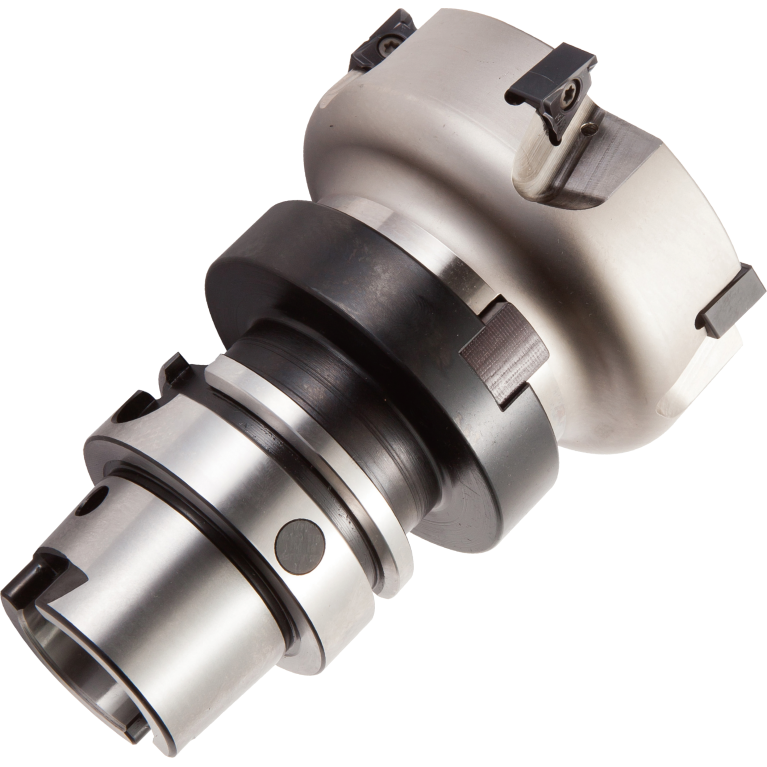

HSK63A-FMC40-60

HSK63A-FMC40-60 HSK63A-FMC40-60 HSK63A-FMC40-60

HSK63A-FMC40-60

Korloy
Артикул: 6-01-013933
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
89 mm
BLDEV Balancing device
0
CCFWS Connection code form
01
CCSWS Connection code style
0
CCTWS Connection code type
SPK
CCUWS Connection code unit base
1
CNSC Coolant entry style code
4 - With Coolant entry, axial on hole circle
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
4 - With Coolant exit, axial on hole circle
CZCWS Connection size code
0400
DAH Diameter access hole
12 mm
DCONWS Diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
HSK06300195
FamilyProducts
HSK-FMC
HAND Cutting direction
N - Neutral
ID Technical product number
6-01-013933
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LF Functional length
60 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
SPK Spindle nose mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0400
LOC-01 DCONWS Diameter
40 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SPK04000110
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LSCX Clamping length maximum
27 mm
Name Identifying order number
HSK63A-FMC40-60
NOH Mounting hole count
4
PENDP Pendulum property
0 - Without
Rotation Rotation indicator
1 - rotating tool
THSZWS Connection thread nominal size workpiece side
M20
WT Weight of item
2 kg
