Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSK63A-DSC25-120

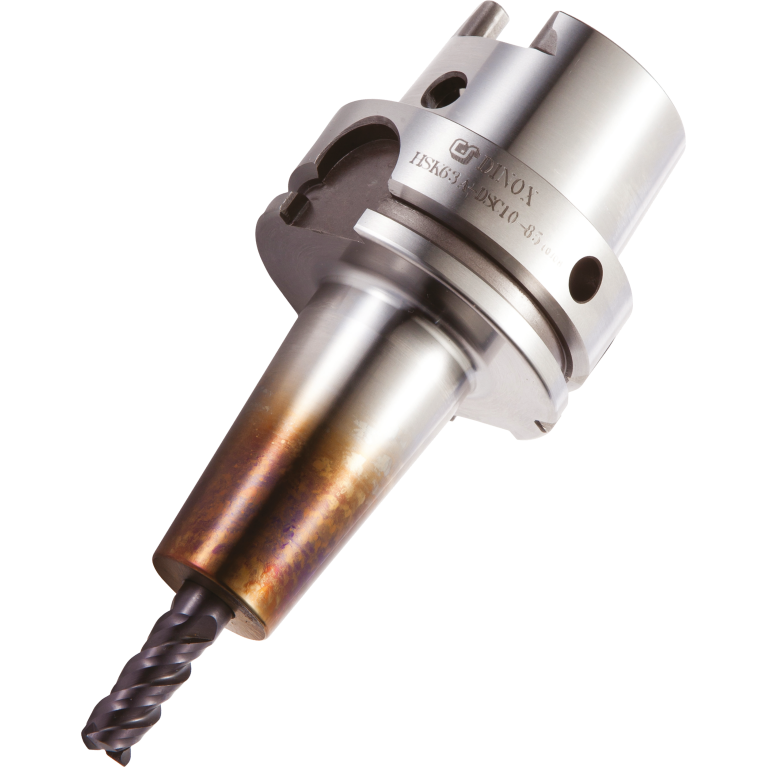

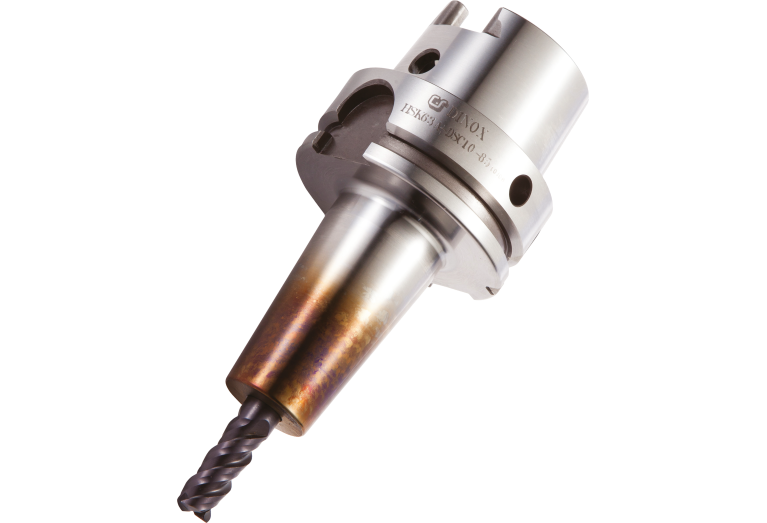

HSK63A-DSC25-120

HSK63A-DSC25-120 HSK63A-DSC25-120 HSK63A-DSC25-120

HSK63A-DSC25-120

Korloy
Артикул: 6-01-019273
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
44 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0250
DCONWS Diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DF Flange diameter
52.5 mm
DIN
HSK06300185
FamilyProducts
HSK-DSC
HAND Cutting direction
N - Neutral
ID Technical product number
6-01-019273
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LF Functional length
120 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0250
LOC-01 DCONWS Diameter
25 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02500105
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300185
LPR Protruding length
120 mm
LSCN Clamping length minimum
48 mm
LSCX Clamping length maximum
58 mm
Name Identifying order number
HSK63A-DSC25-120
PENDP Pendulum property
0 - Without
Rotation Rotation indicator
1 - rotating tool
TA Taper angle
4 Degree
WT Weight of item
1.8 kg
