Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSK E50 SRK3X80

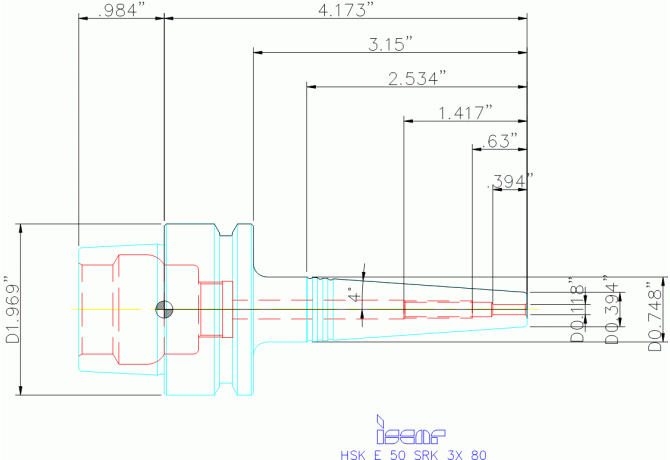

HSK E50 SRK3X80

HSK E50 SRK3X80 HSK E50 SRK3X80

HSK E50 SRK3X80

Iscar
Артикул: 4504491
В наличии
В корзину
Описание
Характеристики
ADJHT Adujstment height property
0
BD Body diameter
19 mm
BLDEV Balancing device
0
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCONWS Connection count workpiece side
1
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0030
DCINTF Interference cutting diameter
10 mm
DCONWS Diameter
3 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/14/2013
DF Flange diameter
50 mm
DIN
HSK05000395
FamilyProducts
HSK E 50 SRK 3X 80, HSK 40 E Schrumpffutter, gew
HAND Cutting direction
N - Neutral
ID Technical product number
4504491
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
0 - manual clamping
LB Body length 1
80 mm
LF Functional length
106 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0030
LOC-01 DCONWS Diameter
3 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00300115
LOC-03 CCFMS Connection code form
03
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK05000395
LPR Protruding length
106 mm
LSCN Clamping length minimum
10 mm
LSCX Clamping length maximum
18 mm
Name Identifying order number
HSK E50 SRK3X80
OAL Overall length
131 mm
RPMX Rotational speed maximum
40000 1/min
TA Taper angle
4 Degree
WT Weight of item
0.5 kg
