Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSK E40 SRK6X80

HSK E40 SRK6X80

HSK E40 SRK6X80 HSK E40 SRK6X80

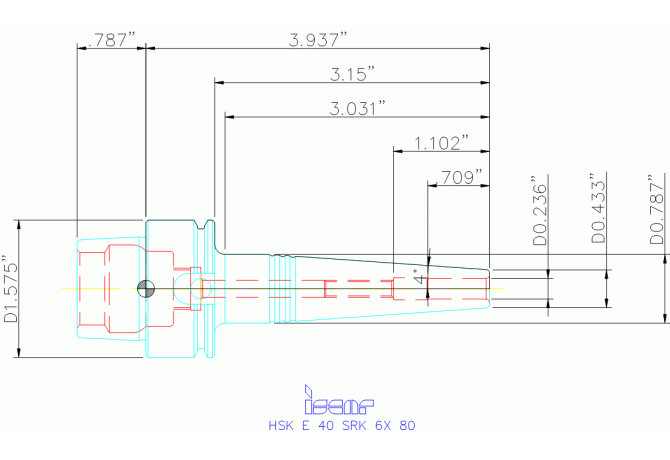

HSK E40 SRK6X80

Iscar
Артикул: 4503360
В наличии
В корзину
Описание
Характеристики
ADJHT Adujstment height property
0
BD Body diameter
20 mm
BLDEV Balancing device
0
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCONWS Connection count workpiece side
1
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0060
DCINTF Interference cutting diameter
11 mm
DCONWS Diameter
6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/14/2013
DF Flange diameter
40 mm
DIN
HSK04000395
FamilyProducts
HSK E 40 SRK 6X 80, HSK 40 E Schrumpffutter, gew
HAND Cutting direction
N - Neutral
ID Technical product number
4503360
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
0 - manual clamping
LB Body length 1
80 mm
LF Functional length
100 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0060
LOC-01 DCONWS Diameter
6 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00600115
LOC-03 CCFMS Connection code form
03
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK04000395
LPR Protruding length
100 mm
LSCN Clamping length minimum
18 mm
LSCX Clamping length maximum
35 mm
Name Identifying order number
HSK E40 SRK6X80
OAL Overall length
120 mm
RPMX Rotational speed maximum
40000 1/min
TA Taper angle
4 Degree
WT Weight of item
0.37 kg
