Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSK E32 ER20X60

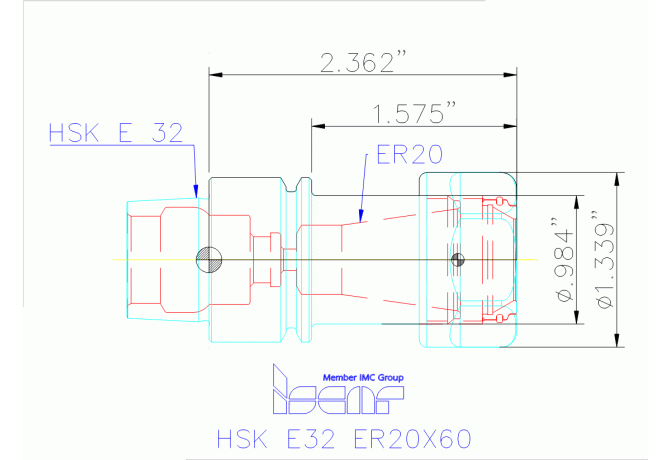

HSK E32 ER20X60

HSK E32 ER20X60 HSK E32 ER20X60

HSK E32 ER20X60

Iscar
Артикул: 4505783
В наличии
В корзину
Описание
Характеристики
ADJHT Adujstment height property
0
BD Body diameter 2
25.4 mm
BLDEV Balancing device
0
BLQ Balance quality code
G2.5
CCFWS Connection code form
02
CCONWS Connection count workpiece side
1
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0200
DCONWS Diameter
10 mm
DCONXWS Connection diameter max
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
HSK03200395
FamilyProducts
HSK E 32 ER20X 60
HAND Cutting direction
N - Neutral
ID Technical product number
4505783
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
0 - manual clamping
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01 DCONWS Diameter
10 mm
LOC-01 DCONXWS Connection diameter max
10 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD02000295
LOC-03 CCFMS Connection code form
03
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK03200395
LPR Protruding length
60 mm
LSCN Clamping length minimum
30 mm
LSCX Clamping length maximum
40 mm
Name Identifying order number
HSK E32 ER20X60
RPMX Rotational speed maximum
40000 1/min
WT Weight of item
0.2 kg
