Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSK E 40 SEM 16X50

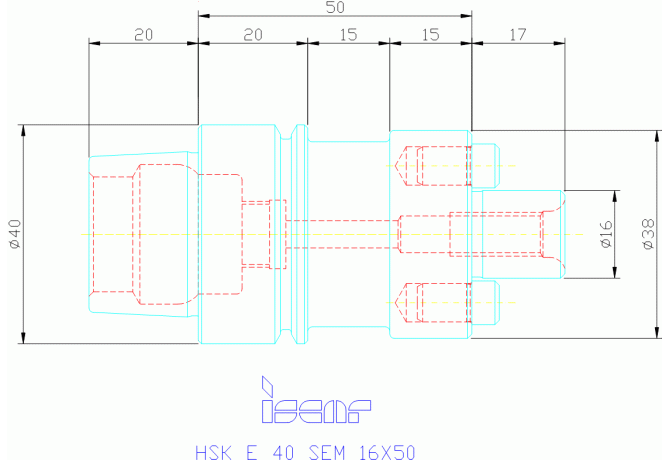

HSK E 40 SEM 16X50

HSK E 40 SEM 16X50 HSK E 40 SEM 16X50

HSK E 40 SEM 16X50

Iscar
Артикул: 4504486
В наличии
В корзину
Описание
Характеристики
ADJHT Adujstment height property
0
BLDEV Balancing device
0
BLQ Balance quality code
G2.5
CCFWS Connection code form
02
CCONWS Connection count workpiece side
1
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0100
DCONWS Diameter
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
HSK04000385
FamilyProducts
HSK E 40 SEM 16X50, ISO 3937 shell mill holder wit
HAND Cutting direction
N - Neutral
ID Technical product number
4504486
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
0 - manual clamping
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0100
LOC-01 DCONWS Diameter
10 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA01600200
LOC-03 CCFMS Connection code form
03
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK04000385
LPR Protruding length
50 mm
LSCN Clamping length minimum
30 mm
LSCX Clamping length maximum
40 mm
Name Identifying order number
HSK E 40 SEM 16X50
RPMX Rotational speed maximum
40000 1/min
WT Weight of item
0.27 kg
