Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSK A50 HYDRO 10X85

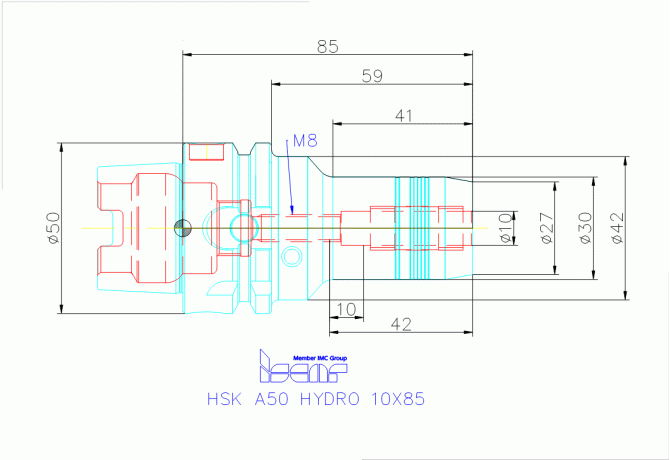

HSK A50 HYDRO 10X85

HSK A50 HYDRO 10X85 HSK A50 HYDRO 10X85

HSK A50 HYDRO 10X85

Iscar
Артикул: 4559344
В наличии
В корзину
Описание
Характеристики
BD Body diameter
30 mm
BD Body diameter 2
42 mm
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0100
DCINTF Interference cutting diameter
27 mm
DCONWS Diameter
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/1/2012
DIN
HSK05000195
FamilyProducts
HSK A 50 HYDRO 10X85
HAND Cutting direction
N - Neutral
ID Technical product number
4559344
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
41 mm
LB Length 2
18 mm
LF Functional length
85 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0100
LOC-01 DCONWS Diameter
10 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01000115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK05000195
LPR Protruding length
85 mm
LSCX Clamping length maximum
32 mm
Name Identifying order number
HSK A50 HYDRO 10X85
OAL Overall length
110 mm
