Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSK A100 SRKIN16X120

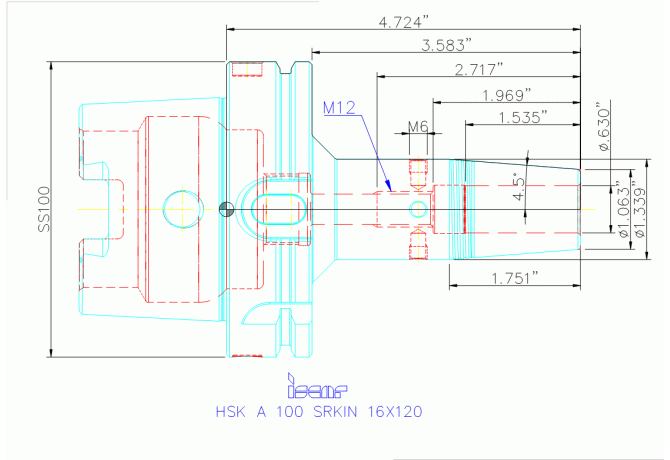

HSK A100 SRKIN16X120

HSK A100 SRKIN16X120 HSK A100 SRKIN16X120

HSK A100 SRKIN16X120

Iscar
Артикул: 4504234
В наличии
В корзину
Описание
Характеристики
ADJHT Adujstment height property
0
BD Body diameter
34 mm
BLDEV Balancing device
0
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCONWS Connection count workpiece side
1
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0160
DCINTF Interference cutting diameter
27 mm
DCONWS Diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/14/2013
DF Flange diameter
100 mm
DIN
HSK10000195
FamilyProducts
HSK A 100 SRKIN 16X120, HSK-Aufnahme mit SHRINKIN-
HAND Cutting direction
N - Neutral
ID Technical product number
4504234
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
0 - manual clamping
LB Body length 1
91 mm
LF Functional length
120 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01600115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
100 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
120 mm
LSCN Clamping length minimum
39 mm
LSCX Clamping length maximum
50 mm
Name Identifying order number
HSK A100 SRKIN16X120
OAL Overall length
170 mm
TA Taper angle
4.5 Degree
