Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSK A100 FM60X70

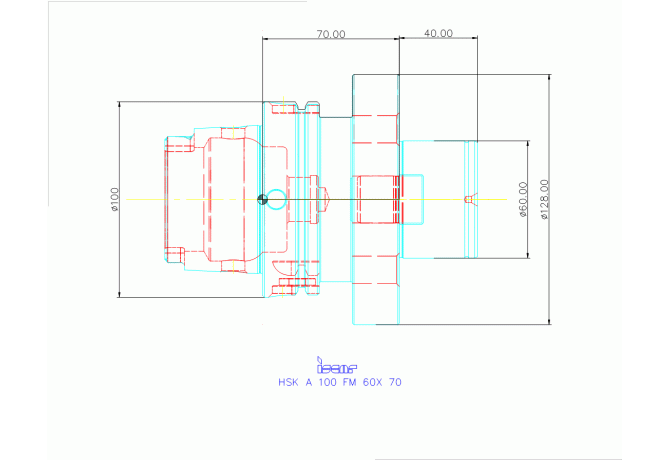

HSK A100 FM60X70

HSK A100 FM60X70 HSK A100 FM60X70

HSK A100 FM60X70

Iscar
Артикул: 4561236
В наличии
В корзину
Описание
Характеристики
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
SPK
CCUWS Connection code unit base
0
COMPC Company code
IS - Iscar
CZCWS Connection size code
0600
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
HSK10000195
FamilyProducts
HSK A 100 FM 60X 70
HAND Cutting direction
N - Neutral
ID Technical product number
4561236
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
SPK Spindle nose mounting
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0600
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SPK06000200
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
Name Identifying order number
HSK A100 FM60X70
OAL Overall length
70 mm
