Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric HSK A 50 SRKIN 8X80

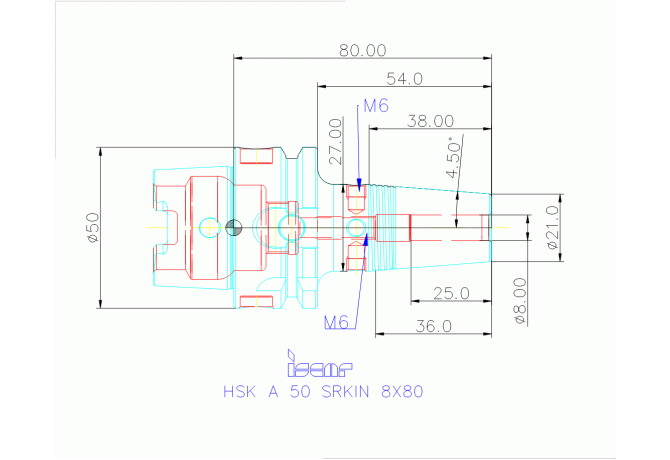

HSK A 50 SRKIN 8X80

HSK A 50 SRKIN 8X80 HSK A 50 SRKIN 8X80

HSK A 50 SRKIN 8X80

Iscar
Артикул: 4590447
В наличии
В корзину
Описание
Характеристики
ADJHT Adujstment height property
0
BD Body diameter
27 mm
BLDEV Balancing device
0
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCONWS Connection count workpiece side
1
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0080
DCINTF Interference cutting diameter
21 mm
DCONWS Diameter
8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/14/2013
DF Flange diameter
50 mm
DIN
HSK05000195
FamilyProducts
HSK A 50 SRKIN, HSK-SHRINKIN holder
HAND Cutting direction
N - Neutral
ID Technical product number
4590447
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
0 - manual clamping
LB Body length 1
54 mm
LF Functional length
80 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0080
LOC-01 DCONWS Diameter
8 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00800115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK05000195
LPR Protruding length
80 mm
LSCN Clamping length minimum
25 mm
LSCX Clamping length maximum
36 mm
Name Identifying order number
HSK A 50 SRKIN 8X80
OAL Overall length
105 mm
TA Taper angle
4.5 Degree
WT Weight of item
0.57 kg
