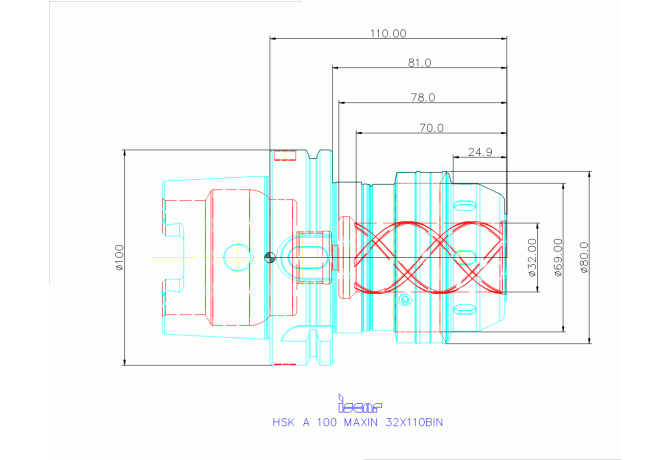

HSK A 100 MAXIN 32X110BIN

HSK A 100 MAXIN 32X110BIN HSK A 100 MAXIN 32X110BIN

HSK A 100 MAXIN 32X110BIN

Iscar
Артикул: 4505463
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
69 mm
BLDEV Balancing device
1
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0320
DCONWS Diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
HSK10000195
FamilyProducts
HSK A 100 MAXIN 32X110BIN
HAND Cutting direction
N - Neutral
ID Technical product number
4505463
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
1 - automatic clamping
LB Body length 1
81 mm
LF Functional length
110 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0320
LOC-01 DCONWS Diameter
32 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL03200115
LOC-02 DCONWS Diameter
32 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
IS-SC32SPR
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
110 mm
LSCN Clamping length minimum
70 mm
LSCX Clamping length maximum
78 mm
Name Identifying order number
HSK A 100 MAXIN 32X110BIN
TCMC Tool change method code
1 - automatic tool change
WT Weight of item
2.75 kg
