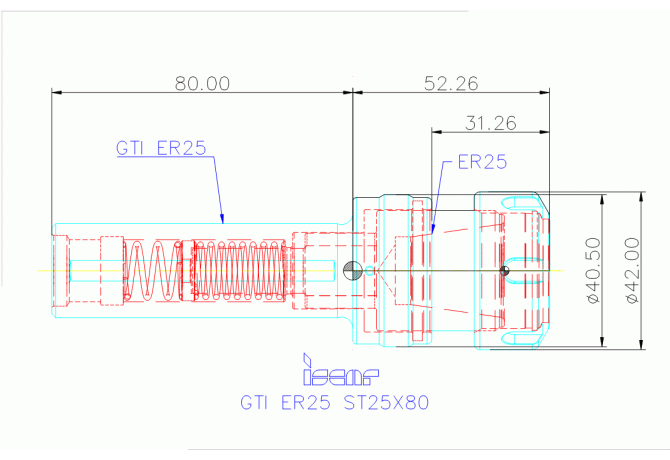

GTI ER25 ST25X80

GTI ER25 ST25X80 GTI ER25 ST25X80

GTI ER25 ST25X80

Iscar
Артикул: 4545021
В наличии
В корзину
Описание
Характеристики
BD Body diameter
42 mm
CCFWS Connection code form
02
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0250
DCONWS Diameter
1 mm
DCONXWS Connection diameter max
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
ZYL02501015
DLN Diameter lock nut
42 mm
FamilyProducts
GTI ER25 ST25X80
HAND Cutting direction
N - Neutral
ID Technical product number
4545021
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LCOMP Length compensation for compression
4 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0250
LOC-01 DCONWS Diameter
1 mm
LOC-01 DCONXWS Connection diameter max
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD02500295
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015
LS Shank length
80 mm
LTENS Length compensation for tension
9 mm
Name Identifying order number
GTI ER25 ST25X80
WT Weight of item
0.55 kg
