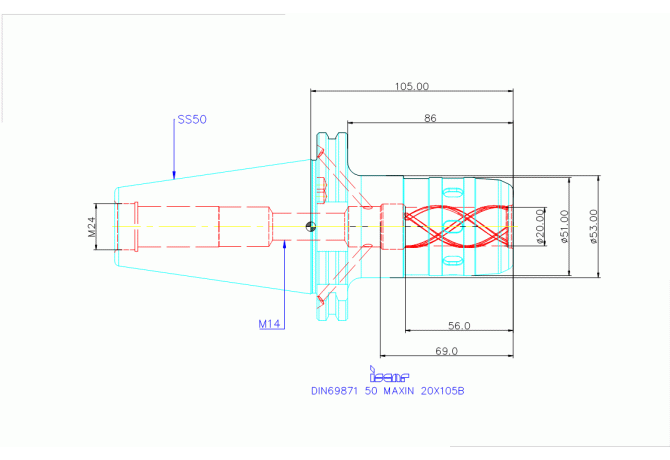

DIN69871 50 MAXIN 20X105B

DIN69871 50 MAXIN 20X105B DIN69871 50 MAXIN 20X105B

DIN69871 50 MAXIN 20X105B

Iscar
Артикул: 4506252
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
51 mm
BD Body diameter 2
53 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0200
DCONWS Diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DF Flange diameter
5251.45 mm
DIN
SKG05001795
FamilyProducts
DIN69871 50 MAXIN 20X105B
HAND Cutting direction
N - Neutral
ID Technical product number
4506252
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
1 - automatic clamping
LB Body length 1
86 mm
LB Length 2
19 mm
LF Functional length
105 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01 DCONWS Diameter
20 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02000115
LOC-02 DCONWS Diameter
20 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
IS-SC20SPR
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05001795
LPR Protruding length
105 mm
Name Identifying order number
DIN69871 50 MAXIN 20X105B
OAL Overall length
206.75 mm
TCMC Tool change method code
1 - automatic tool change
