Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric DIN69871 40 MAXIN 32X106

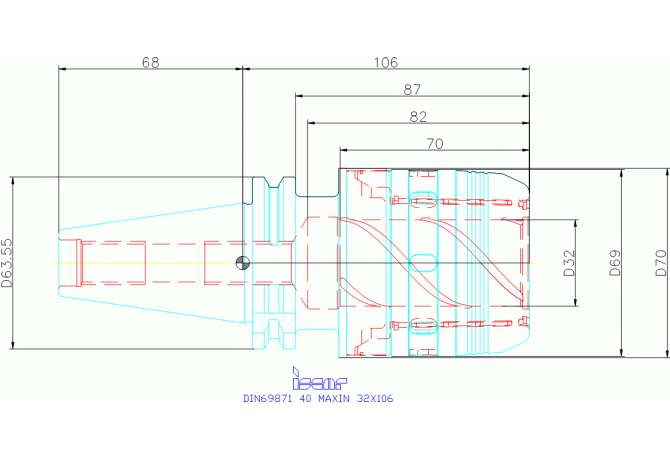

DIN69871 40 MAXIN 32X106

DIN69871 40 MAXIN 32X106 DIN69871 40 MAXIN 32X106

DIN69871 40 MAXIN 32X106

Iscar
Артикул: 4504295
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
69 mm
BD Body diameter 2
70 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0320
DCONWS Diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DF Flange diameter
4429.76 mm
DIN
SKG04001795
FamilyProducts
DIN69871 40 MAXIN 32X106
HAND Cutting direction
N - Neutral
ID Technical product number
4504295
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
1 - automatic clamping
LB Body length 1
87 mm
LB Length 2
18 mm
LF Functional length
106 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0320
LOC-01 DCONWS Diameter
32 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL03200115
LOC-02 DCONWS Diameter
32 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
IS-SC32SPR
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001795
LPR Protruding length
106 mm
Name Identifying order number
DIN69871 40 MAXIN 32X106
OAL Overall length
174.4 mm
TCMC Tool change method code
1 - automatic tool change
