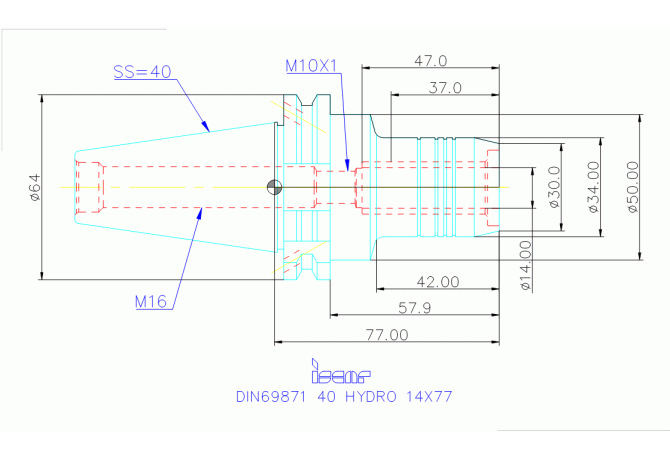

DIN69871 40 HYDRO 14X77

Артикул: 4559288

В наличии

В корзину

Описание

Характеристики

BD Body diameter

34 mm

BD Body diameter 2

50 mm

BLQ Balance quality code

G6.3

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0140

DCINTF Interference cutting diameter

30 mm

DCONWS Diameter

14 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

SKG04001795

FamilyProducts

DIN69871 40 HYDRO 14X77

HAND Cutting direction

N - Neutral

ID Technical product number

4559288

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

42 mm

LB Length 2

16 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0140

LOC-01 DCONWS Diameter

14 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01400115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04001795

LPR Protruding length

77 mm

LS Shank length

68.4 mm

Name Identifying order number

DIN69871 40 HYDRO 14X77

OAH Overall height

47 mm

OAL Overall length

145.4 mm

RADH Radial height

37 mm

RPMX Rotational speed maximum

18000 1/min
