Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric DIN69871 30 SEMC 27X 55

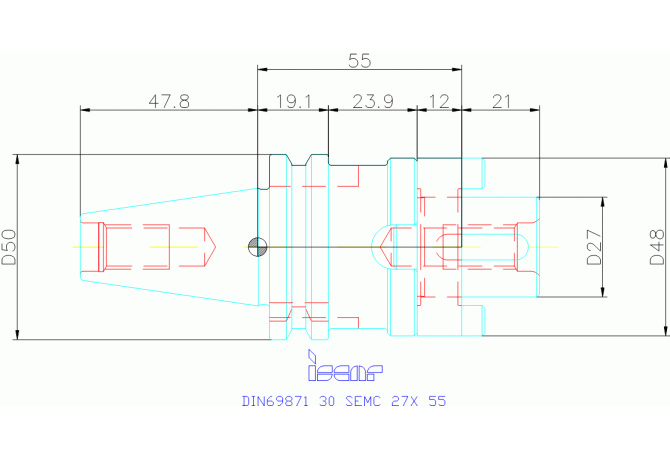

DIN69871 30 SEMC 27X 55

Артикул: 4538020

В наличии

В корзину

Описание

Характеристики

BD Body diameter

48 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

FDA

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

CZCWS Connection size code

0270

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/1/2012

DIN

SKG03001795

FamilyProducts

DIN69871 30 SEMC 27X 55

HAND Cutting direction

N - Neutral

ID Technical product number

4538020

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0270

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA02700210

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0300

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG03001795

LPR Protruding length

55 mm

Name Identifying order number

DIN69871 30 SEMC 27X 55

STDNO Standard

0300
