Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric DIN69871 30 HYDRO 20X90

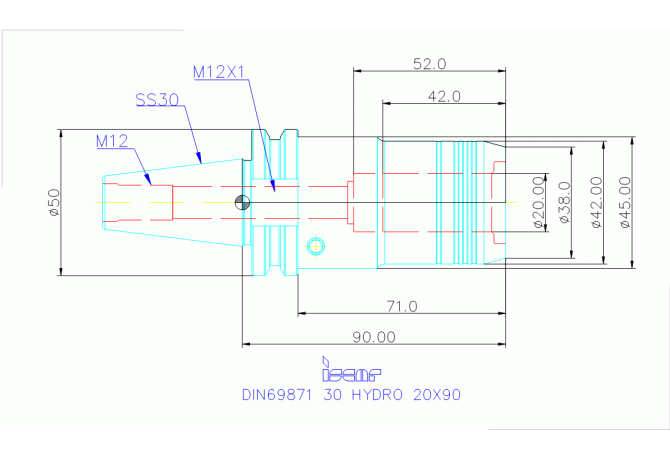

DIN69871 30 HYDRO 20X90

DIN69871 30 HYDRO 20X90 DIN69871 30 HYDRO 20X90

DIN69871 30 HYDRO 20X90

Iscar
Артикул: 4559283
В наличии
В корзину
Описание
Характеристики
BD Body diameter
42 mm
BD Body diameter 2
45 mm
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0200
DCINTF Interference cutting diameter
38 mm
DCONWS Diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
SKG03001795
FamilyProducts
DIN69871 30 HYDRO 20X90
HAND Cutting direction
N - Neutral
ID Technical product number
4559283
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
71 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01 DCONWS Diameter
20 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02000115
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0300
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG03001795
LPR Protruding length
90 mm
LS Shank length
47.8 mm
Name Identifying order number
DIN69871 30 HYDRO 20X90
OAH Overall height
52 mm
OAL Overall length
137.8 mm
RADH Radial height
42 mm
RPMX Rotational speed maximum
18000 1/min
WT Weight of item
0.9 kg
