Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric CFS201N-10-030-ZYL-HA16-S

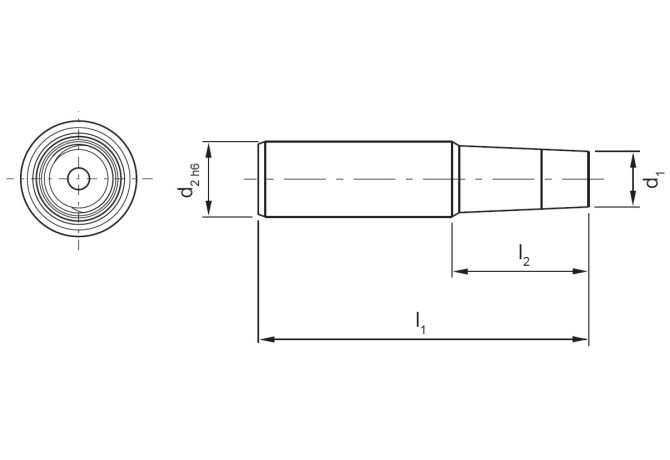

CFS201N-10-030-ZYL-HA16-S

CFS201N-10-030-ZYL-HA16-S CFS201N-10-030-ZYL-HA16-S

CFS201N-10-030-ZYL-HA16-S

Mapal
Артикул: 30393798
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BLDEV Balancing device
0
CCFWS Connection code form
01
CCONWS Connection count workpiece side
1
CCSWS Connection code style
5
CCTWS Connection code type
SAM
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MP - Mapal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0100
DCINTF Interference cutting diameter
11.8 mm
DCONWS Diameter
11.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/2/2015
DIN
ZYL01600115
FamilyProducts
CFS holder for milling heads
HAND Cutting direction
R - Right
ID Technical product number
30393798
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LF Functional length
70 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SAM Screw mounting MAPAL
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0100
LOC-01 DCONWS Diameter
11.8 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAM01000115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600115
LPR Protruding length
30 mm
Name Identifying order number
CFS201N-10-030-ZYL-HA16-S
OAL Overall length
70 mm
PENDP Pendulum property
0 - Without
Rotation Rotation indicator
1 - rotating tool
TA Taper angle
5 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
