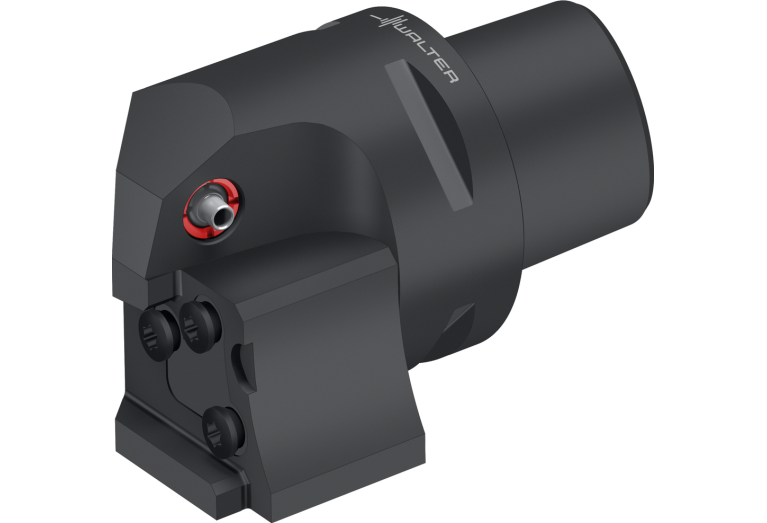

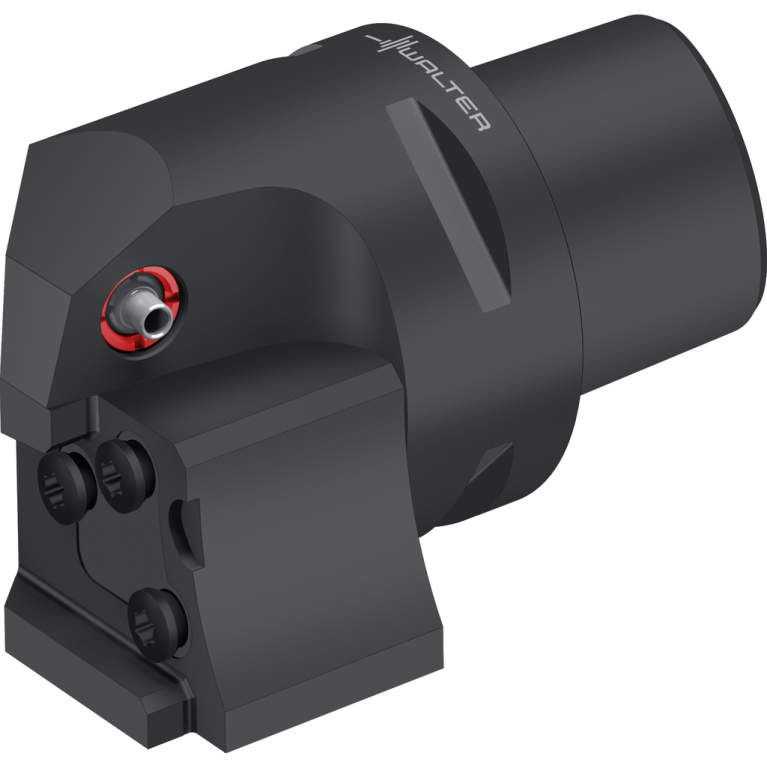

C6-MSS-E32R90

C6-MSS-E32R90 C6-MSS-E32R90 C6-MSS-E32R90

C6-MSS-E32R90

Walter
Артикул: 5011677
В наличии
В корзину
Описание
Характеристики
CCFWS Form
03
CCSWS Style
5
CCTWS Type
PMA
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
L032
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS06300195
FamilyProducts
Turning tools – Modular C...-MSS...90
HAND Cutting direction
R - Right
HF Functional height
25.5 mm
ID Technical product number
5011677
Interface codes
J6 / J61
ISO
CCS01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LF Functional length
57 mm
LOC-01 CCFWS Form
03
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
PMA Prism mounting
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
L032
LOC-01 ISO
PMA03CL032****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
PMAL0320395
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR Protruding length
62.5 mm
LS Shank length
38 mm
Name Identifying order number
C6-MSS-E32R90
OAL Overall length
103.5 mm
RADW Radial width
32.5 mm
STDNO Standard
ISO26623-1
WF Functional width
27 mm
WT Weight of item
1.629 kg
