Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric C6-MSS-E25R00

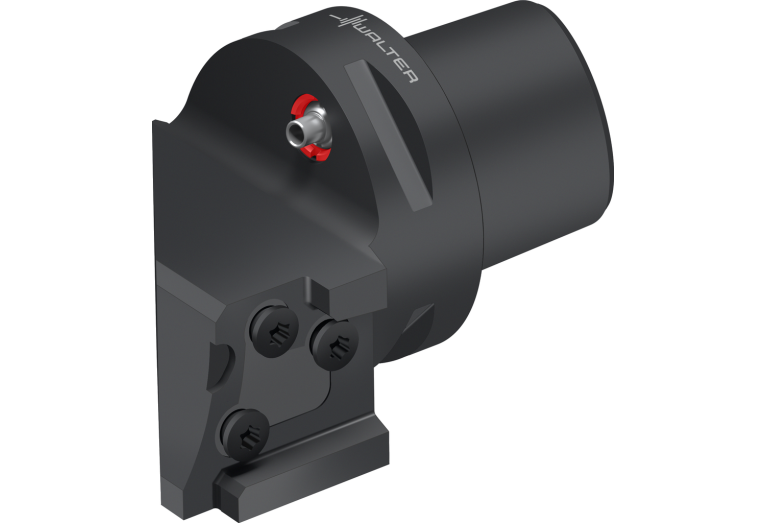

C6-MSS-E25R00

C6-MSS-E25R00 C6-MSS-E25R00 C6-MSS-E25R00

C6-MSS-E25R00

Walter
Артикул: 5012522
В наличии
В корзину
Описание
Характеристики
CCFWS Form
03
CCSWS Style
5
CCTWS Type
PMA
CCUWS Unit base
8
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
R025
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS06300185
FamilyProducts
Turning tools – Modular C...-MSS...00
HAND Cutting direction
R - Right
HF Functional height
20 mm
ID Technical product number
5012522
Interface codes
J6 / J61
ISO
CCS01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LF Functional length
53.5 mm
LOC-01 CCFWS Form
03
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
PMA Prism mounting
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
R025
LOC-01 ISO
PMA03CR025****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
PMAR0250385
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300185
LPR Protruding length
59 mm
LS Shank length
38 mm
Name Identifying order number
C6-MSS-E25R00
OAL Overall length
100 mm
RADW Radial width
37 mm
STDNO Standard
ISO26623-1
WF Functional width
31.5 mm
WT Weight of item
1.17 kg
