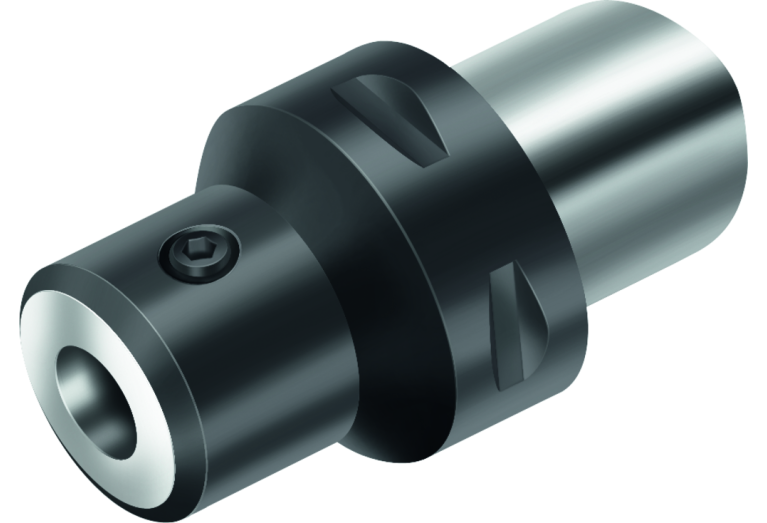

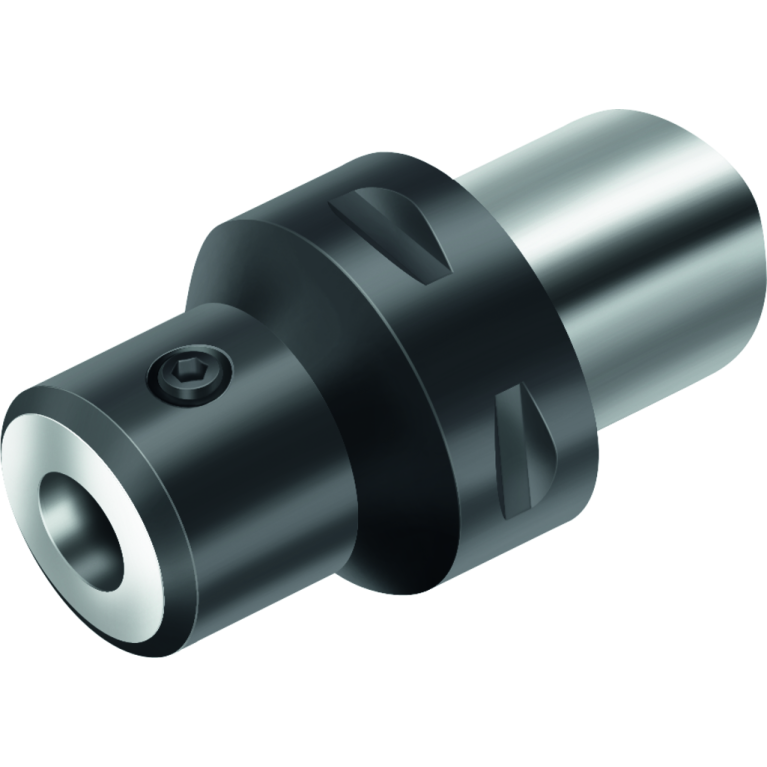

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric C3-A391.20-15060

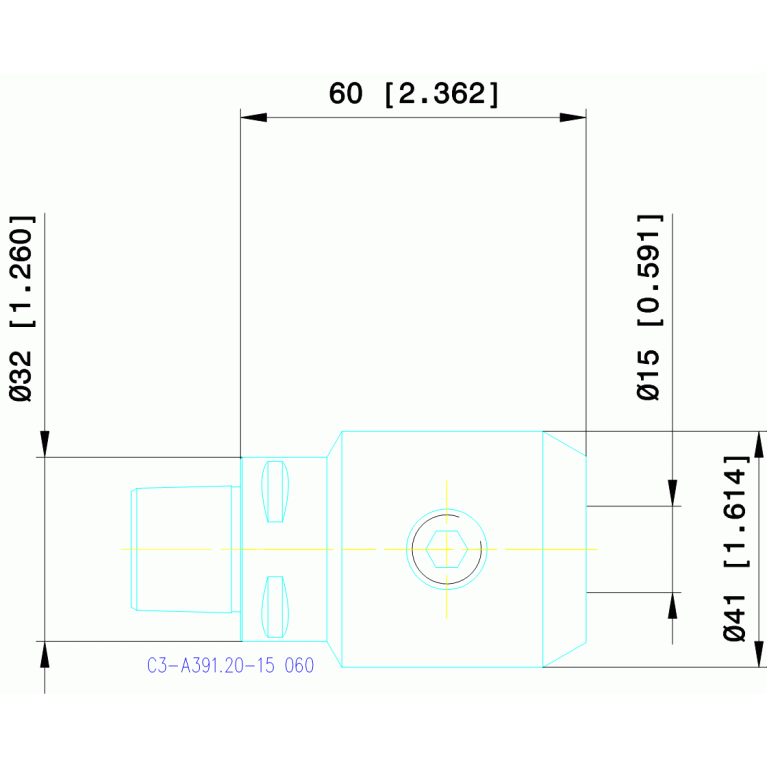

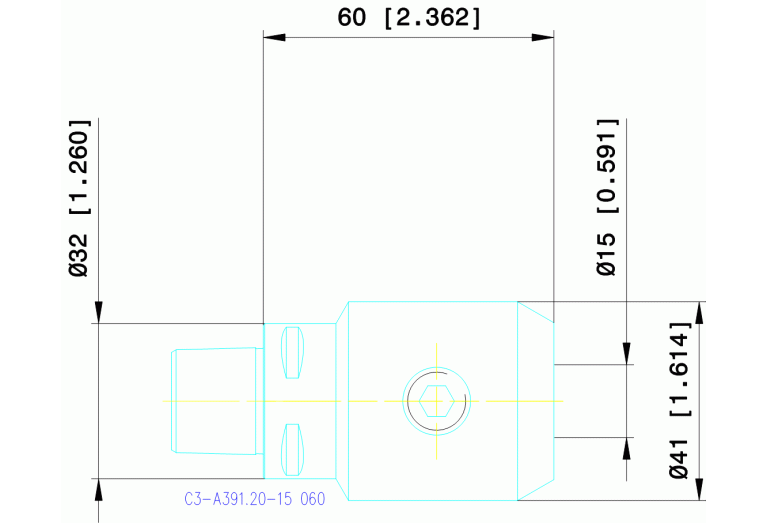

C3-A391.20-15060

Артикул: 5051416

В наличии

В корзину

Описание

Характеристики

BD Body diameter

41 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0625

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS03200195

FamilyProducts

Weldon shank adaptor C.-391.20

ID Technical product number

5051416

Interface codes

J6 / J61

ISO

CCS01C0320$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

45 mm

LF Functional length

60 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

3 Inch with coolant

LOC-01 CZCWS Size code

0625

LOC-01 ISO

ZYL18R6250****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL06251835

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

3 Inch with coolant

LOC-02 CZCWS Size code

0625

LOC-02 ISO

ZYL10G1587****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01581015

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 ISO

CCS01C0320$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS03200195

LPR Protruding length

60 mm

Name Identifying order number

C3-A391.20-15060

OAL Overall length

78 mm

RPMX Rotational speed maximum

55000 1/min

STDNO Standard

ISO26623-1

WT Weight of item

0.3 kg
