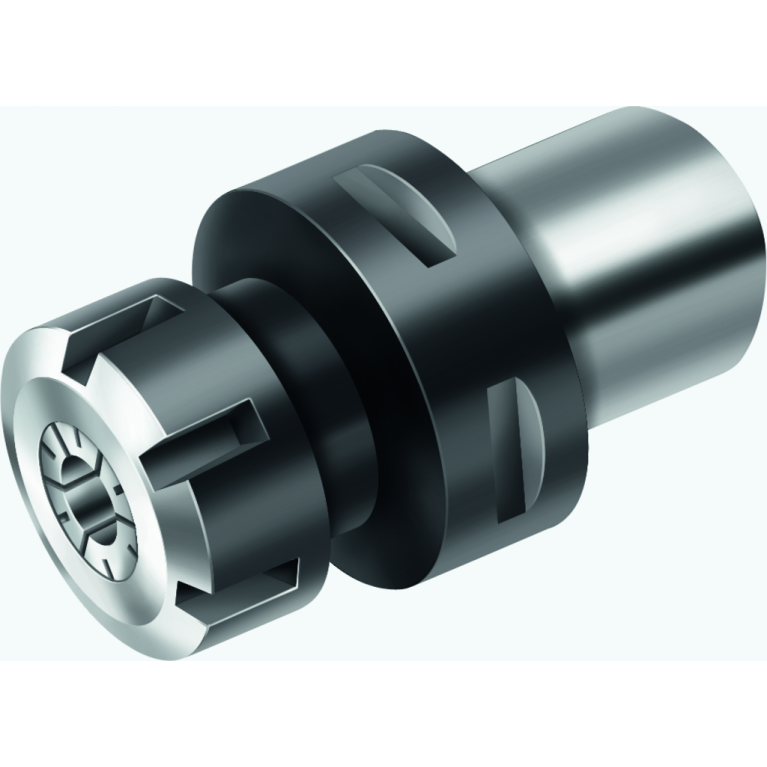

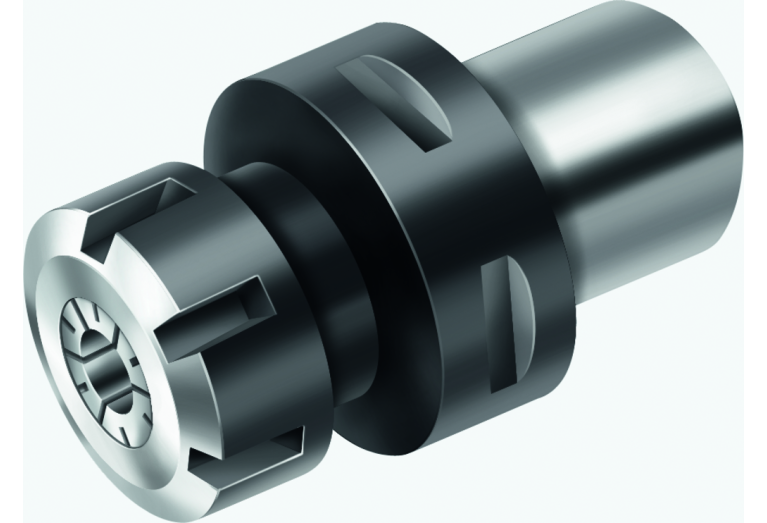

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric C3-391.14-20 050

C3-391.14-20 050

C3-391.14-20 050 C3-391.14-20 050 C3-391.14-20 050

C3-391.14-20 050

Walter
Артикул: 5043636
В наличии
В корзину
Описание
Характеристики

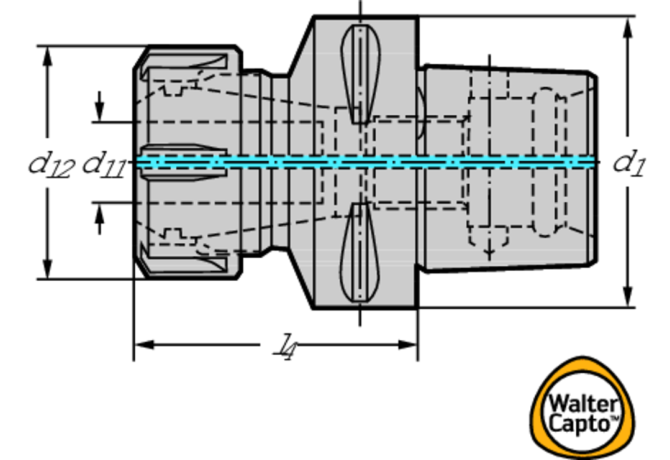

BD Body diameter
35 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0200
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS03200195
DLN Diameter lock nut
35 mm
FamilyProducts
ER collet chucks for internal cooling C.-391.14
ID Technical product number
5043636
Interface codes
J6 / J61
ISO
CCS01C0320$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
50 mm
LF Functional length
38.5 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0200
LOC-01 ISO
SZD02C0200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD02000295
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR Protruding length
50 mm
LS Shank length
19 mm
Name Identifying order number
C3-391.14-20 050
OAL Overall length
69 mm
RPMX Rotational speed maximum
55000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
0.238 kg
