Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric BT50-NPU13-190

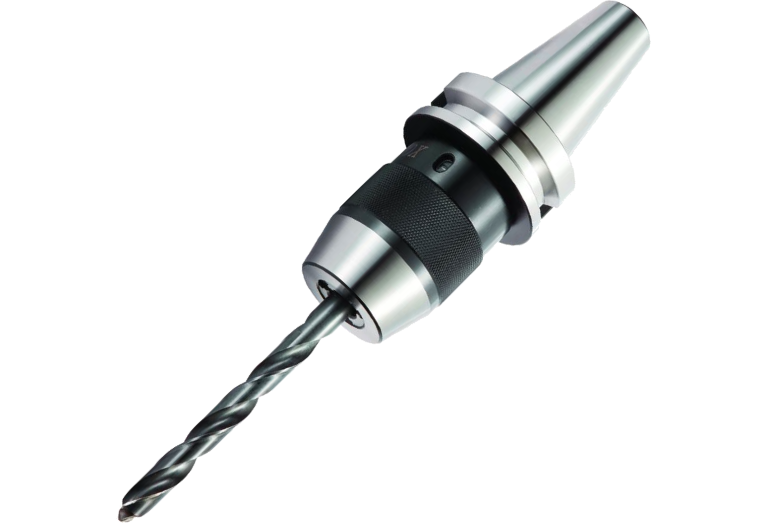

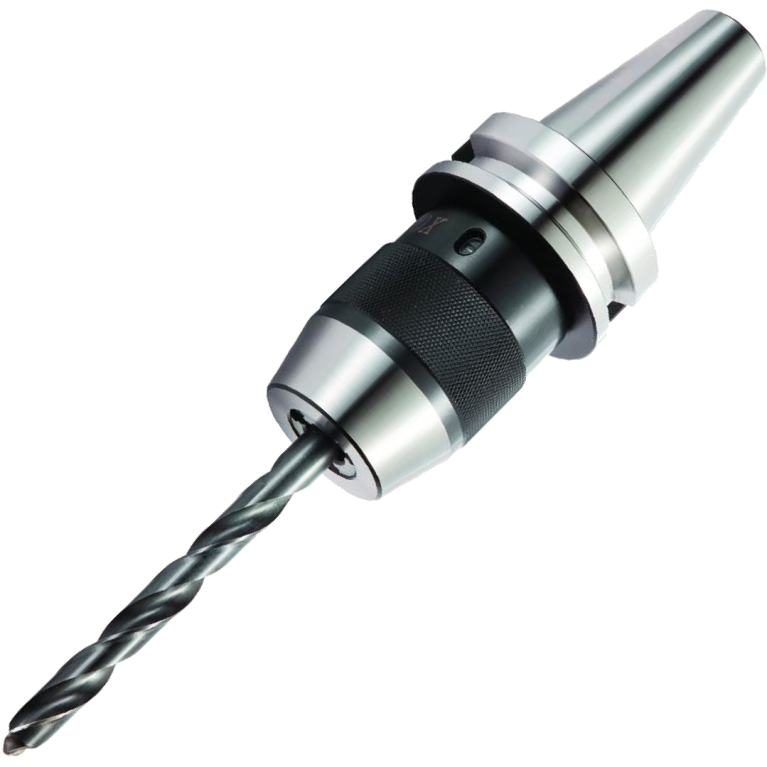

BT50-NPU13-190

BT50-NPU13-190 BT50-NPU13-190 BT50-NPU13-190

BT50-NPU13-190

Korloy
Артикул: 6-01-003473
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible

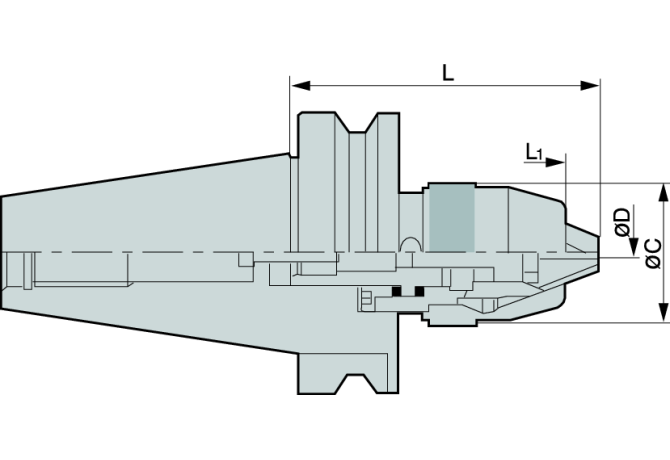

BD Body diameter
50 mm
CCFWS Connection code form
01
CCSWS Connection code style
0
CCTWS Connection code type
BFA
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
0 - Without coolant exit
DCONWS Diameter
1 mm
DCONXWS Connection diameter max
13 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
SKG05005085
FamilyProducts
BT-NPU
HAND Cutting direction
N - Neutral
ID Technical product number
6-01-003473
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
12.5 mm
LF Functional length
190 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
BFA Drill chuck taper
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 DCONWS Diameter
1 mm
LOC-01 DCONXWS Connection diameter max
13 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00100105ZYL01300105
LOC-02 DCONWS Diameter
1 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
KOR-NPU13
LOC-03 CCFMS Connection code form
50
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05005085
LPR Protruding length
190 mm
Name Identifying order number
BT50-NPU13-190
PENDP Pendulum property
0 - Without
Rotation Rotation indicator
1 - rotating tool
