Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric BT50 HYDRO S20X110

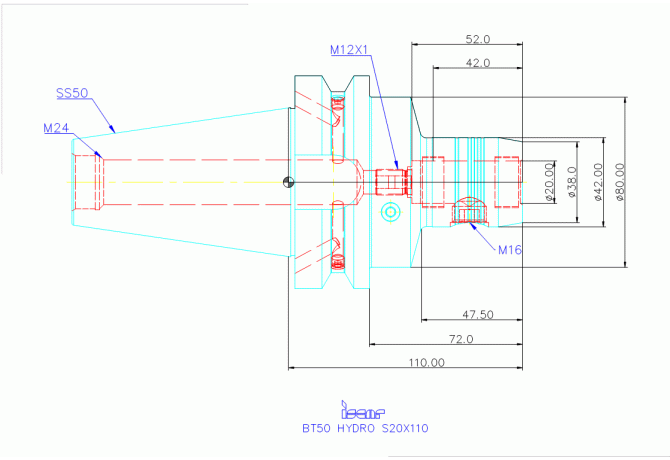

BT50 HYDRO S20X110

BT50 HYDRO S20X110 BT50 HYDRO S20X110

BT50 HYDRO S20X110

Iscar
Артикул: 4559835
В наличии
В корзину
Описание
Характеристики
ADJHT Adujstment height property
0
BD Body diameter
42 mm
BD Body diameter 2
80 mm
BLDEV Balancing device
0
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCONWS Connection count workpiece side
1
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0200
DCONWS Diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/14/2013
DIN
SKG05005795
FamilyProducts
HYDROSURE MAS BT holder
HAND Cutting direction
N - Neutral
ID Technical product number
4559835
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
0 - manual clamping
LB Body length 1
47.5 mm
LB Length 2
24.5 mm
LF Functional length
110 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01 DCONWS Diameter
20 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02000115
LOC-03 CCFMS Connection code form
57
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05005795
LPR Protruding length
110 mm
LS Shank length
101.8 mm
LSCN Clamping length minimum
42 mm
LSCX Clamping length maximum
52 mm
Name Identifying order number
BT50 HYDRO S20X110
RPMX Rotational speed maximum
8000 1/min
WT Weight of item
4.78 kg
