Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric BT40 ER16X150 BIN

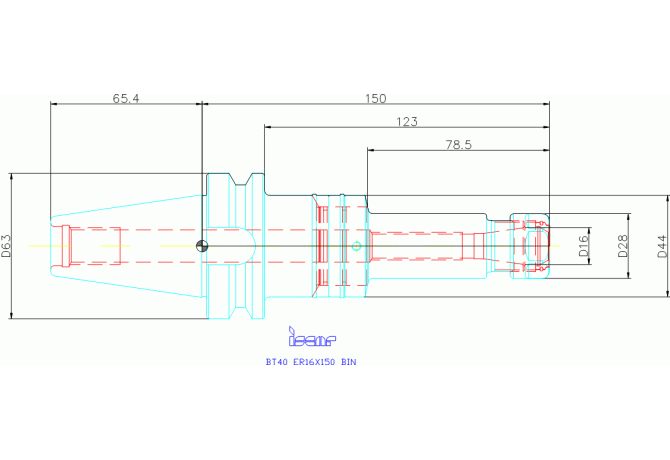

BT40 ER16X150 BIN

Артикул: 4509048

В наличии

В корзину

Описание

Характеристики

BD Body diameter 2

44 mm

BLQ Balance quality code

G2.5

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SZD

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0160

DCONWS Diameter

0.5 mm

DCONXWS Connection diameter max

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

7/2/2016

DIN

SKG04005795

FamilyProducts

BT-ER-BIN (BALANCIN)

HAND Cutting direction

N - Neutral

ID Technical product number

4509048

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

78.7 mm

LB Length 2

44.3 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0160

LOC-01 DCONWS Diameter

0.5 mm

LOC-01 DCONXWS Connection diameter max

10 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD01600295

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04005795

LPR Protruding length

150 mm

Name Identifying order number

BT40 ER16X150 BIN

RPMX Rotational speed maximum

20000 1/min

TCDCON ISO-tolerance class connection bore diameter

ER16

THSZMS Connection thread nominal size machine side

M16

THSZWS Connection thread nominal size workpiece side

M10

WT Weight of item

1.56 kg

Диаметр корпуса (BD) / Body diameter (BD)

28 mm
