Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric BT30 HYDRO 6X60

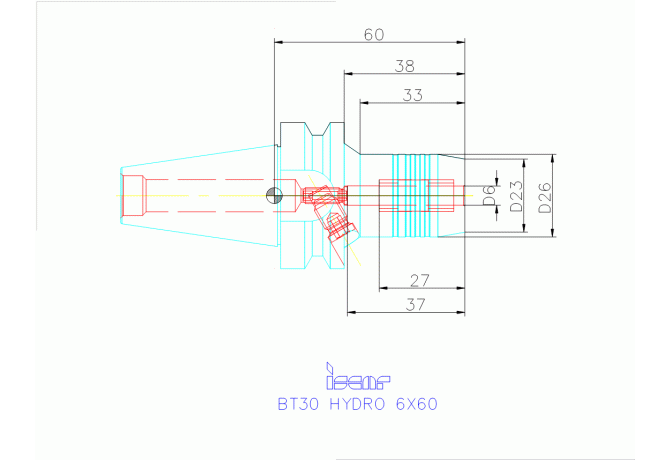

BT30 HYDRO 6X60

BT30 HYDRO 6X60 BT30 HYDRO 6X60

BT30 HYDRO 6X60

Iscar
Артикул: 4559238
В наличии
В корзину
Описание
Характеристики
ADJHT Adujstment height property
0
BD Body diameter
26 mm
BLDEV Balancing device
1
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCONWS Connection count workpiece side
1
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0060
DCINTF Interference cutting diameter
23 mm
DCONWS Diameter
6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
SKG03005195
FamilyProducts
BT30 HYDRO 6 X 60
HAND Cutting direction
N - Neutral
ID Technical product number
4559238
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
0 - manual clamping
LB Body length 1
38 mm
LF Functional length
60 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0060
LOC-01 DCONWS Diameter
6 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00600115
LOC-03 CCFMS Connection code form
51
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0300
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG03005195
LPR Protruding length
60 mm
LS Shank length
48.4 mm
LSCN Clamping length minimum
27 mm
LSCX Clamping length maximum
37 mm
Name Identifying order number
BT30 HYDRO 6X60
OAL Overall length
108.4 mm
RPMX Rotational speed maximum
12000 1/min
WT Weight of item
0.58 kg
