Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric BT30 HYDRO 14X70

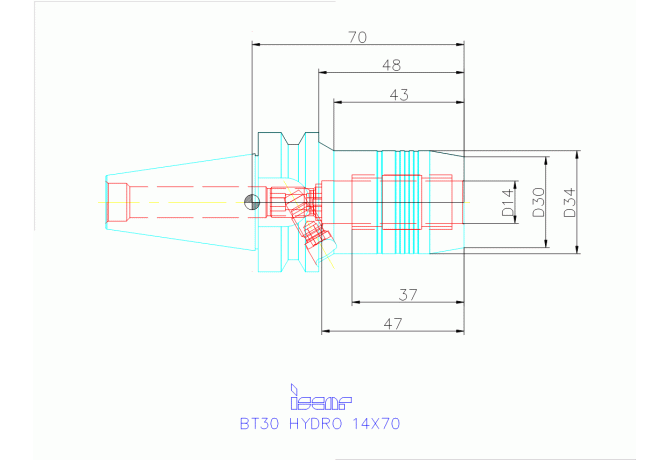

BT30 HYDRO 14X70

BT30 HYDRO 14X70 BT30 HYDRO 14X70

BT30 HYDRO 14X70

Iscar
Артикул: 4559242
В наличии
В корзину
Описание
Характеристики
ADJHT Adujstment height property
0
BD Body diameter
34 mm
BLDEV Balancing device
1
BLQ Balance quality code
G6.3
CCFWS Connection code form
01
CCONWS Connection count workpiece side
1
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0140
DCINTF Interference cutting diameter
30 mm
DCONWS Diameter
14 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
SKG03005195
FamilyProducts
BT30 HYDRO 14 X 70
HAND Cutting direction
N - Neutral
ID Technical product number
4559242
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
0 - manual clamping
LB Body length 1
48 mm
LF Functional length
70 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0140
LOC-01 DCONWS Diameter
14 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01400115
LOC-03 CCFMS Connection code form
51
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0300
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG03005195
LPR Protruding length
70 mm
LS Shank length
48.4 mm
LSCN Clamping length minimum
37 mm
LSCX Clamping length maximum
47 mm
Name Identifying order number
BT30 HYDRO 14X70
OAL Overall length
118.4 mm
RPMX Rotational speed maximum
12000 1/min
WT Weight of item
0.69 kg
