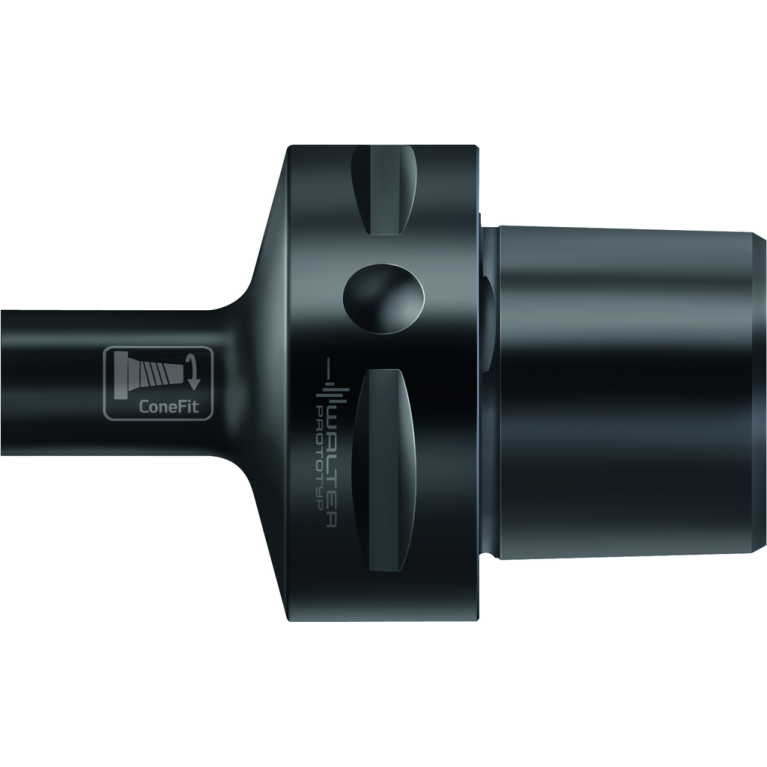

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK681.C5.E16.050

AK681.C5.E16.050

AK681.C5.E16.050 AK681.C5.E16.050 AK681.C5.E16.050

AK681.C5.E16.050

Walter
Артикул: 5930107
В наличии
В корзину
Описание
Характеристики

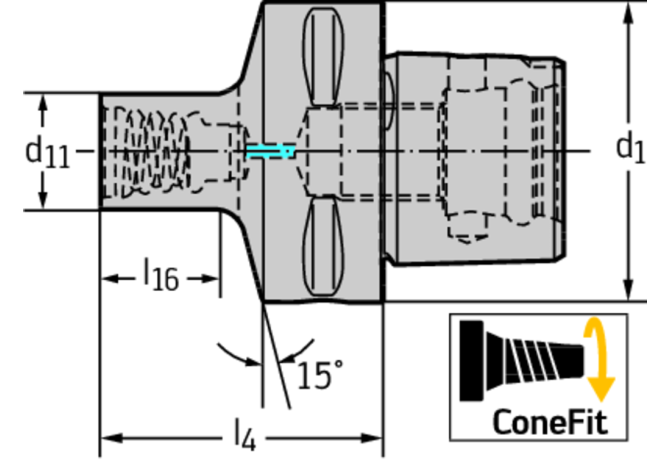

BD Body diameter
15.4 mm
BD Body diameter 2
15.4 mm
CCFWS Form
04
CCSWS Style
5
CCTWS Type
SAC
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0160
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS05000195
FamilyProducts
Walter Capto TM adaptor AK681
ID Technical product number
5930107
Interface codes
J6 / J61
ISO
CCS01C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
21.5 mm
LB Length 2
30 mm
LF Functional length
50 mm
LOC-01 CCFWS Form
04
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SAC Screw mounting SANDVIK Coromant
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0160
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAC01600415
LOC-02 ISO
SAC04B0160****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR Protruding length
50 mm
LS Shank length
30 mm
Name Identifying order number
AK681.C5.E16.050
NOH Mounting hole count
1
OAL Overall length
80 mm
RPMX Rotational speed maximum
80000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
0.53 kg
