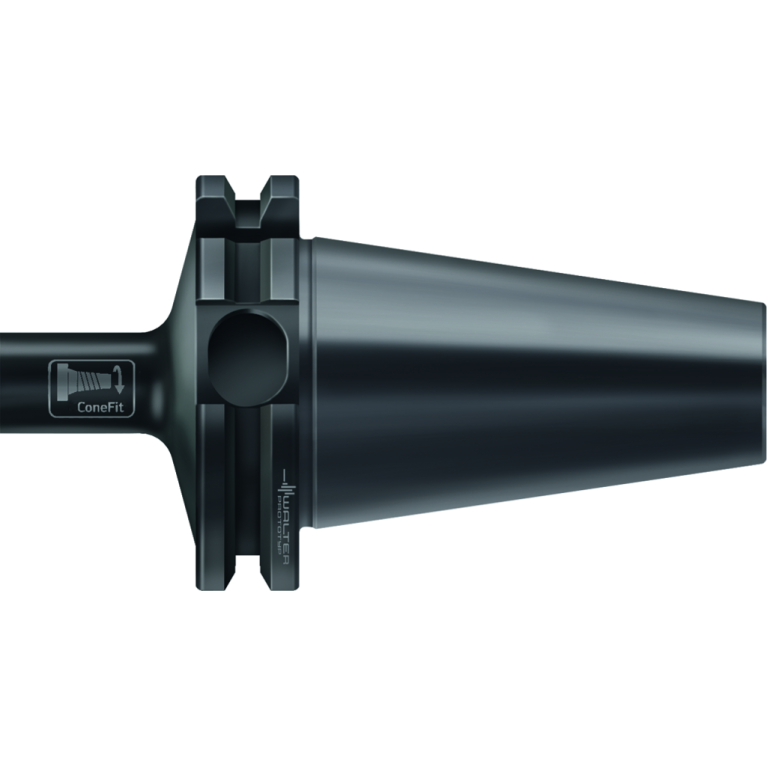

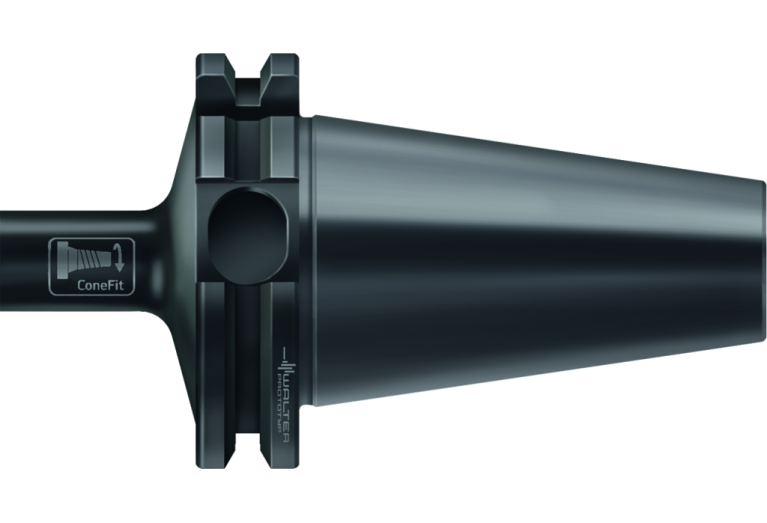

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK641.S40.E25.051

AK641.S40.E25.051

AK641.S40.E25.051 AK641.S40.E25.051 AK641.S40.E25.051

AK641.S40.E25.051

Walter
Артикул: 5930089
В наличии
В корзину
Описание
Характеристики
BD Body diameter
24.1 mm
CCFWS Form
04
CCSWS Style
5
CCTWS Type
SAC
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0250
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
63.55 mm
DIN
SKG04001195
FamilyProducts
DIN 69871 A adaptor AK641
ID Technical product number
5930089
Interface codes
J6 / J61
ISO
SKG11C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
24.6 mm
LB Length 2
32 mm
LF Functional length
51 mm
LOC-01 CCFWS Form
04
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SAC Screw mounting SANDVIK Coromant
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0250
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAC02500495
LOC-02 ISO
SAC04B0250****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 CCFMS Form
11
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SKG steep taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
24.1 mm
LOC-03 ISO
SKG11C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001195
LPR Protruding length
51 mm
Name Identifying order number
AK641.S40.E25.051
NOH Mounting hole count
1
OAL Overall length
119.2 mm
RPMX Rotational speed maximum
80000 1/min
STDLET Standard letter to the standard number
AD
STDNO Standard
ISO7388-1
THSZMS Connection thread nominal size machine side
M16
WT Weight of item
0.967 kg
