Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK541.BT40.T45.100CO

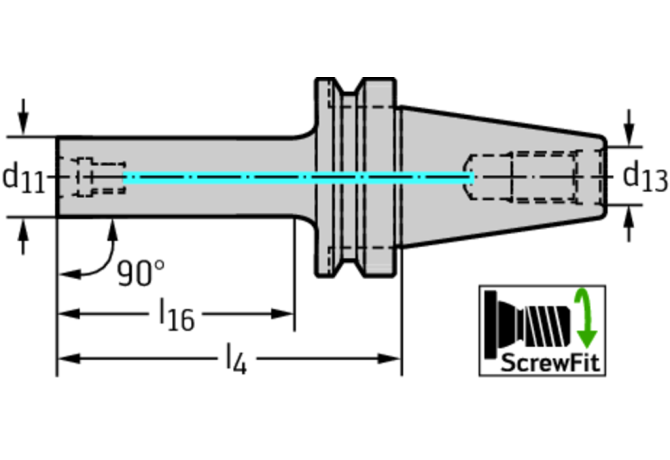

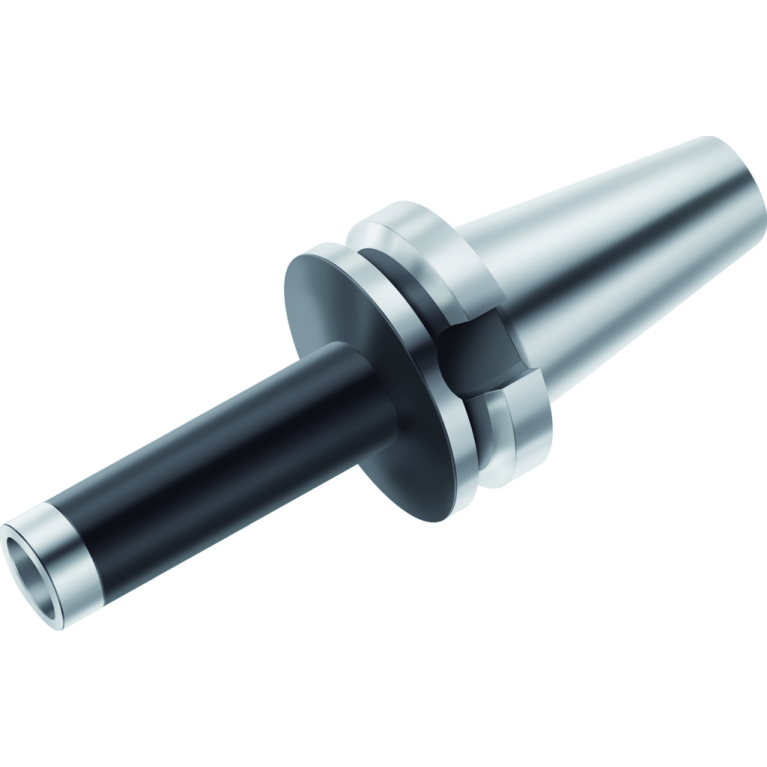

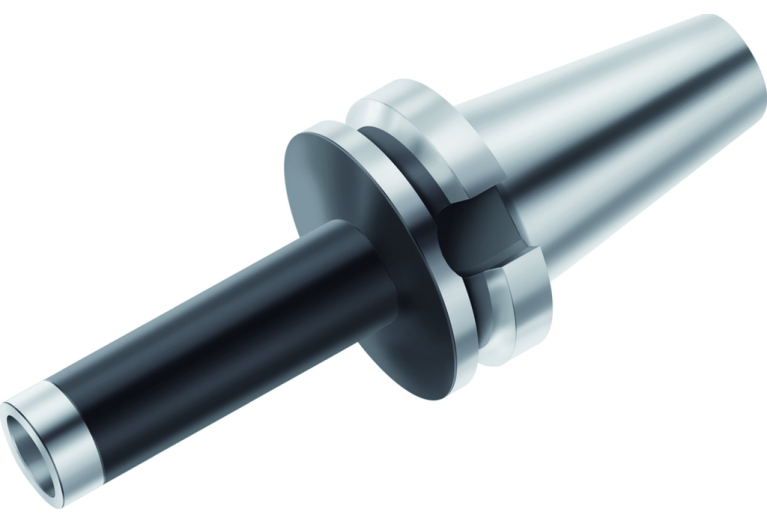

AK541.BT40.T45.100CO

AK541.BT40.T45.100CO AK541.BT40.T45.100CO AK541.BT40.T45.100CO AK541.BT40.T45.100CO

AK541.BT40.T45.100CO

Walter
Артикул: 5150277
В наличии
В корзину
Описание
Характеристики
BD Body diameter
45 mm
BD Body diameter 2
45 mm
BD Body diameter 3
63 mm
CCFWS Form
01
CCSWS Style
5
CCTWS Type
SAW
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0450
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
63 mm
DIN
SKG04005195
FamilyProducts
MAS-BT JIS B 6339 adaptor AK541
ID Technical product number
5150277
Interface codes
J6 / J61
ISO
SKG51C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree

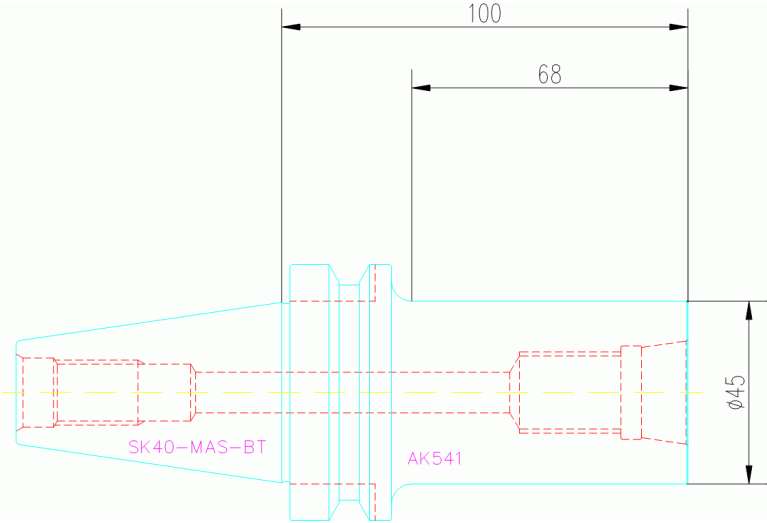

LB Body length 1
68 mm
LB Length 2
73 mm
LB Length Body diameter 3
100 mm
LF Functional length
100 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SAW Screw mounting WALTER
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0450
LOC-01 ISO
SAW01C0450****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAW04500195
LOC-03 CCFMS Form
51
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SKG steep taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
45 mm
LOC-03 ISO
SKG51C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04005195
LPR Protruding length
100 mm
Name Identifying order number
AK541.BT40.T45.100CO
NOH Mounting hole count
100
OAL Overall length
168.4 mm
RPMX Rotational speed maximum
12000 1/min
STDLET Standard letter to the standard number
AD
STDNO Standard
MAS403-BT
WT Weight of item
1.8 kg
