Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK523.T22.35.E25

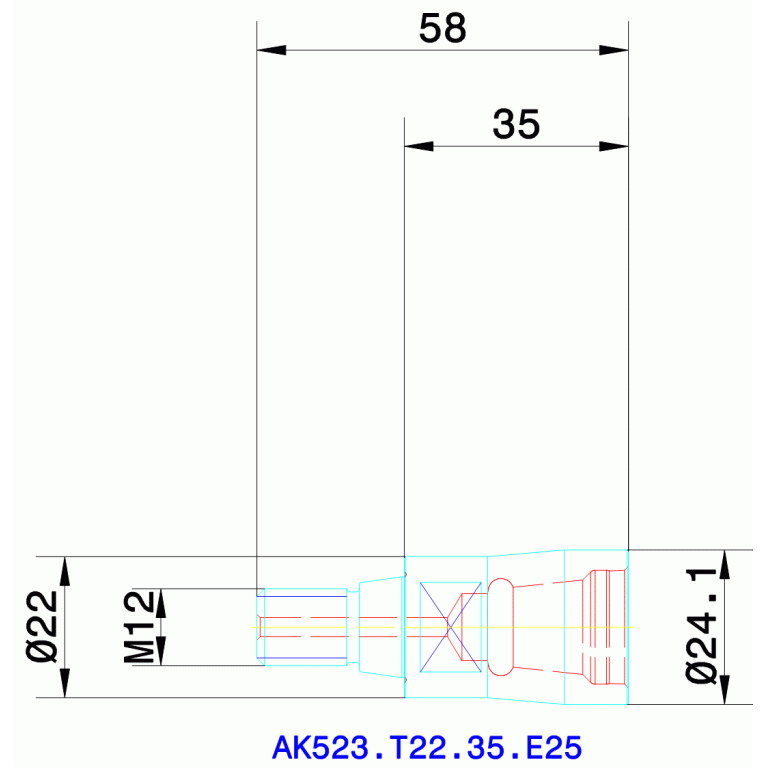

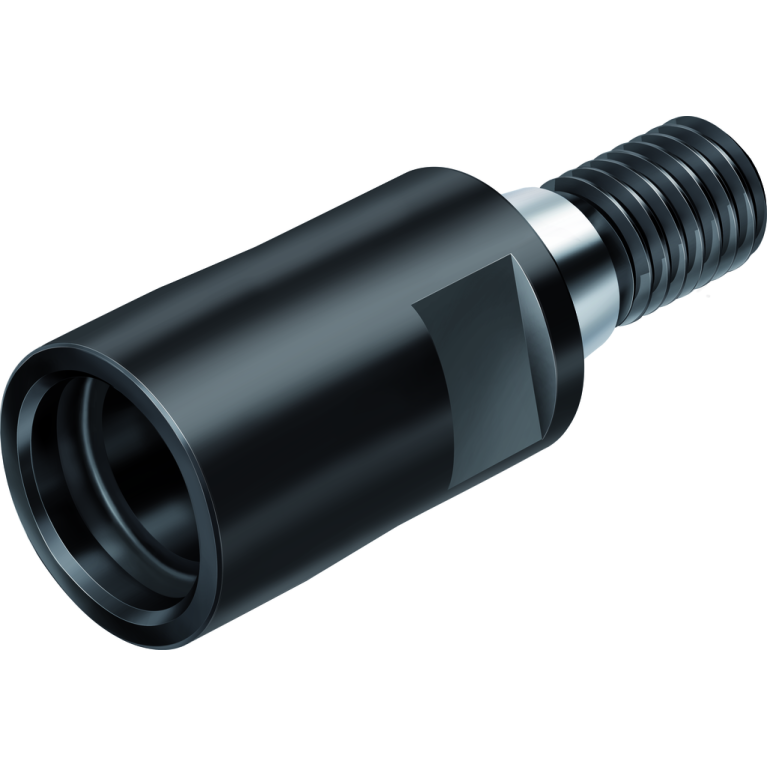

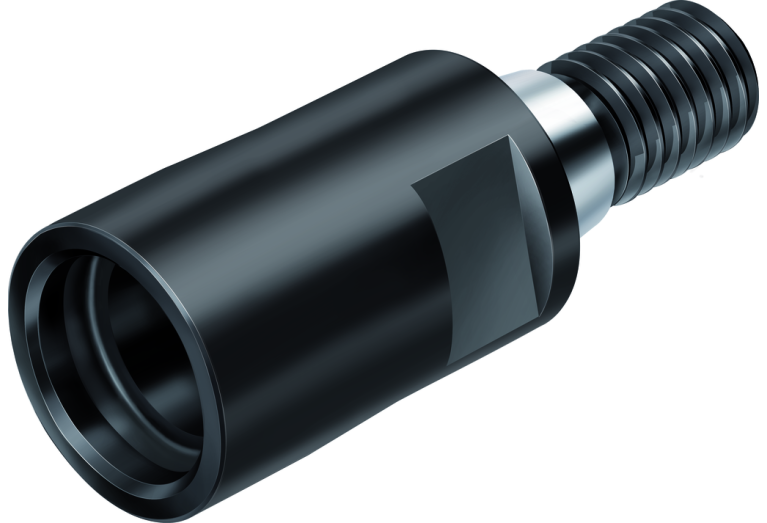

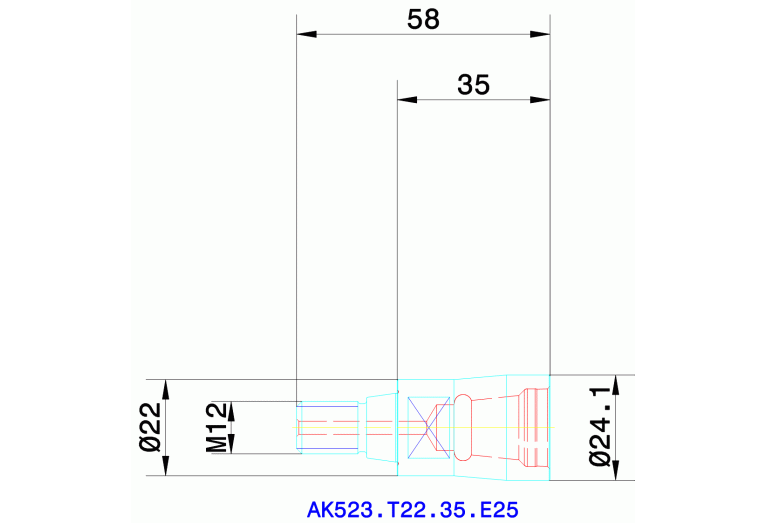

AK523.T22.35.E25

AK523.T22.35.E25 AK523.T22.35.E25 AK523.T22.35.E25 AK523.T22.35.E25

AK523.T22.35.E25

Walter
Артикул: 6253643
В наличии
В корзину
Описание
Характеристики
BD Body diameter
24.1 mm
CCFWS Form
04
CCSWS Style
5
CCTWS Type
SAC
CCUWS Unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0250
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SAW02200185
FamilyProducts

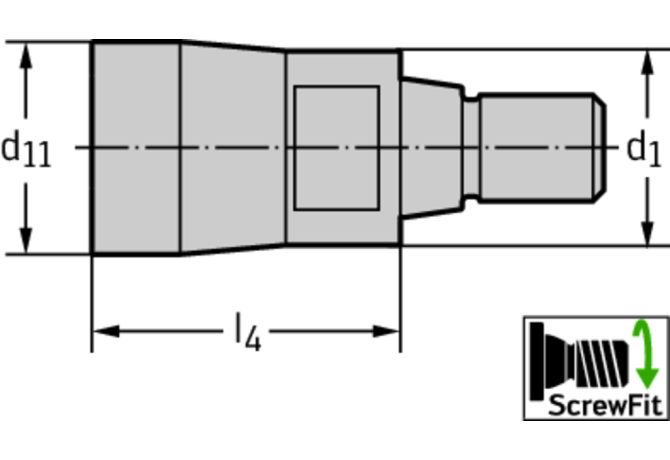

ScrewFit to ConeFit adaptor AK523.T
ID Technical product number
6253643
Interface codes
J6 / J61
ISO
SAW01C0220$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LF Functional length
35 mm
LOC-01 CCFWS Form
04
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SAC Screw mounting SANDVIK Coromant
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
0250
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAC02500485
LOC-02 ISO
SAC04B0250****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 ISO
SAW01C0220$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW02200185
LPR Protruding length
35 mm
Name Identifying order number
AK523.T22.35.E25
OAL Overall length
58 mm
RPMX Rotational speed maximum
1 1/min
WT Weight of item
0.105 kg
