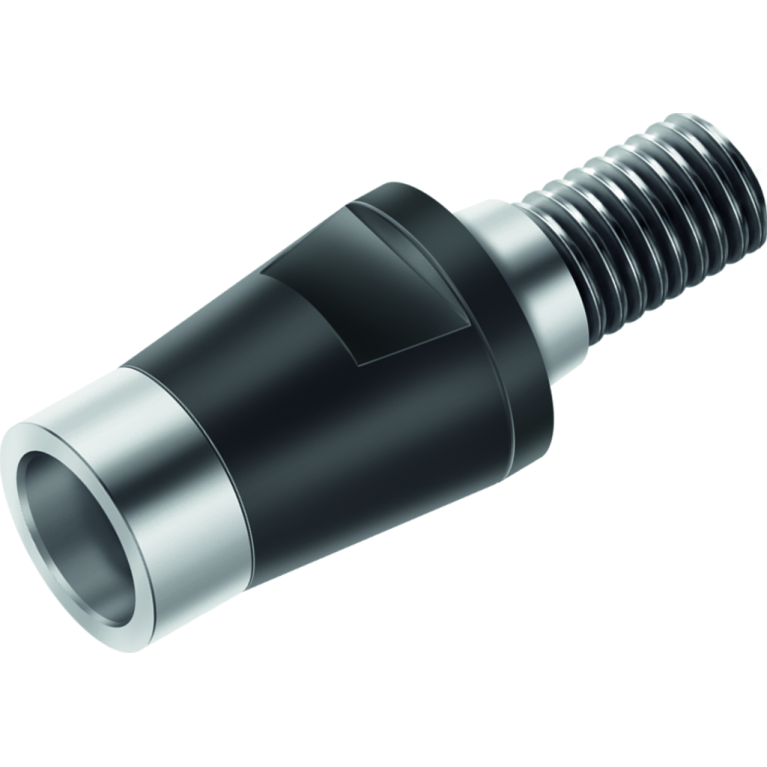

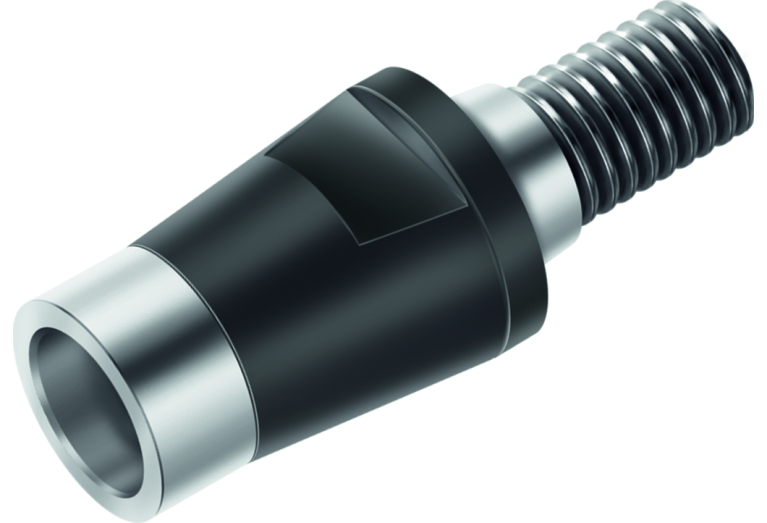

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK522.TC08.30.T14

AK522.TC08.30.T14

AK522.TC08.30.T14 AK522.TC08.30.T14 AK522.TC08.30.T14

AK522.TC08.30.T14

Walter
Артикул: 5017267
В наличии
В корзину
Описание
Характеристики

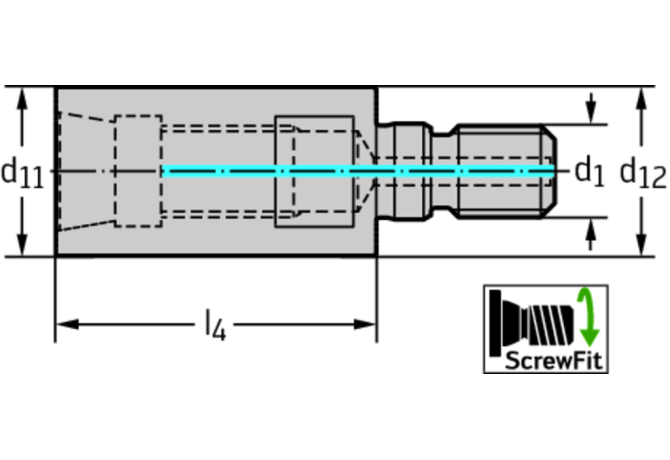

BD Body diameter
14.5 mm
CCFWS Form
01
CCSWS Style
5
CCTWS Type
SAW
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0140
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
14.5 mm
DIN
SAW00800215
FamilyProducts
Reduction adaptor AK522
ID Technical product number
5017267
Interface codes
J6 / J61
ISO
SAW02A0080$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
30 mm
LF Functional length
30 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SAW Screw mounting WALTER
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0140
LOC-01 ISO
SAW01C0140****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAW01400195
LOC-03 CCFMS Form
02
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0080
LOC-03 DCONMS Diameter
14.5 mm
LOC-03 ISO
SAW02A0080$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW00800215
LPR Protruding length
30 mm
LS Shank length
17.5 mm
Name Identifying order number
AK522.TC08.30.T14
NOH Mounting hole count
1
OAL Overall length
47.5 mm
RPMX Rotational speed maximum
50000 1/min
WT Weight of item
0.049 kg
