Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK520.N63.T36.070CO

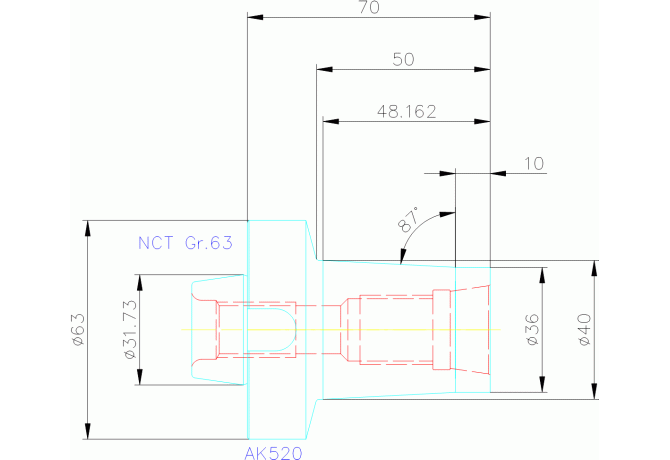

AK520.N63.T36.070CO

AK520.N63.T36.070CO AK520.N63.T36.070CO

AK520.N63.T36.070CO

Walter
Артикул: 5782587
В наличии
В корзину
Описание
Характеристики
BD Body diameter
36 mm
BD Body diameter 2
36 mm
BD Body diameter 3
40 mm
BD Body diameter 4
40 mm
CCFWS Form
01
CCSWS Style
5
CCTWS Type
SAW
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0360
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
63 mm
DIN
NCT06300195
FamilyProducts
NCT adaptor AK520
ID Technical product number
5782587
Interface codes
J6 / J61
ISO
NCT01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
10 mm
LB Length 2
48 mm
LB Length Body diameter 3
50 mm
LB Length Body diameter 4
53 mm
LF Functional length
70 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SAW Screw mounting WALTER
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0360
LOC-01 ISO
SAW01C0360****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAW03600195
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
NCT Novex-NC-Tools WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
NCT01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
NCT06300195
LPR Protruding length
70 mm
Name Identifying order number
AK520.N63.T36.070CO
NOH Mounting hole count
1
OAL Overall length
86 mm
RPMX Rotational speed maximum
30000 1/min
WT Weight of item
0.813 kg
