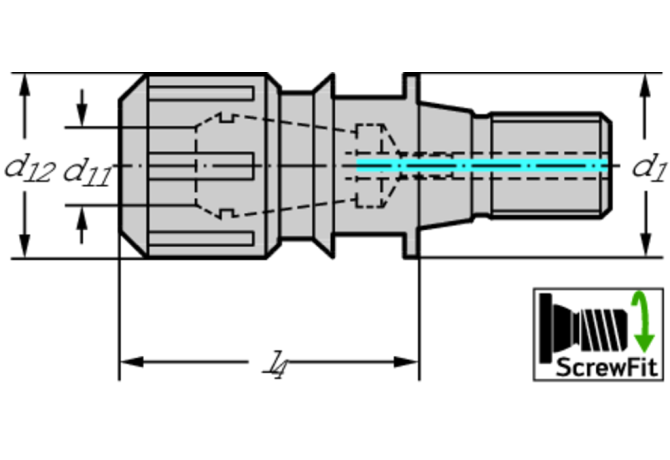

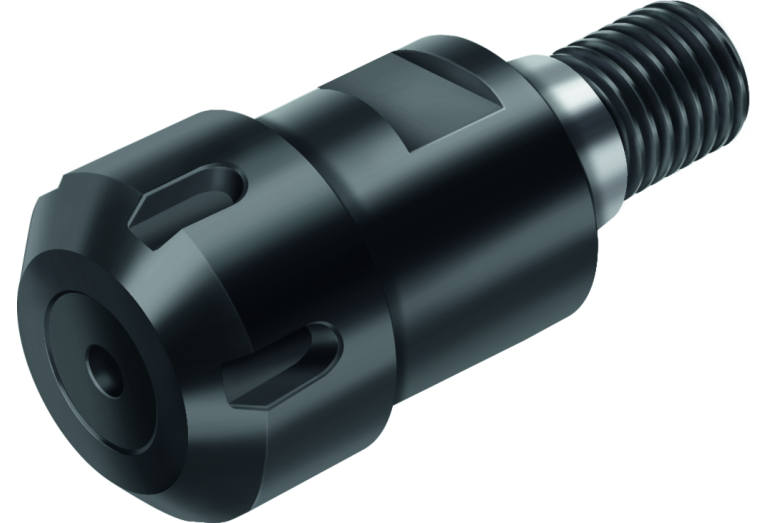

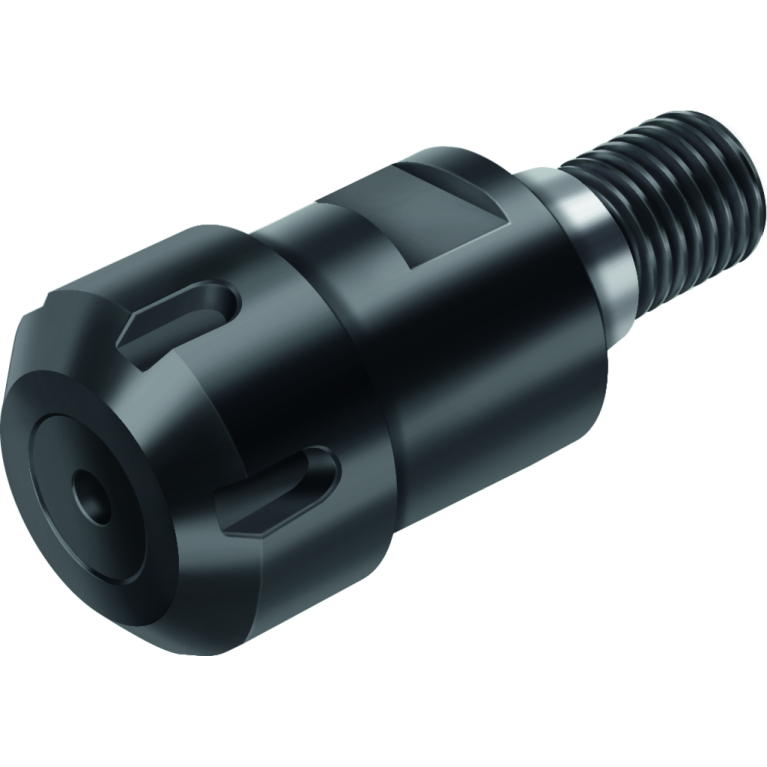

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK300.T28.045.10

AK300.T28.045.10

AK300.T28.045.10 AK300.T28.045.10 AK300.T28.045.10

AK300.T28.045.10

Walter
Артикул: 5193087
В наличии
В корзину
Описание
Характеристики
BD Body diameter
28 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0160
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
28 mm
DIN
SAW02800195
DLN Diameter lock nut
28 mm
FamilyProducts
ER collet chucks AK300.T
ID Technical product number
5193087
Interface codes
J6 / J61
ISO
SAW01C0280$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
45 mm
LF Functional length
29.4 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0160
LOC-01 ISO
SZD02C0160****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01600295
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0280
LOC-03 DCONMS Diameter
28 mm
LOC-03 ISO
SAW01C0280$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW02800195
LPR Protruding length
45 mm
Name Identifying order number
AK300.T28.045.10
OAL Overall length
74 mm
RPMX Rotational speed maximum
45000 1/min
THSZMS Connection thread nominal size machine side
M16
WT Weight of item
0.18 kg
