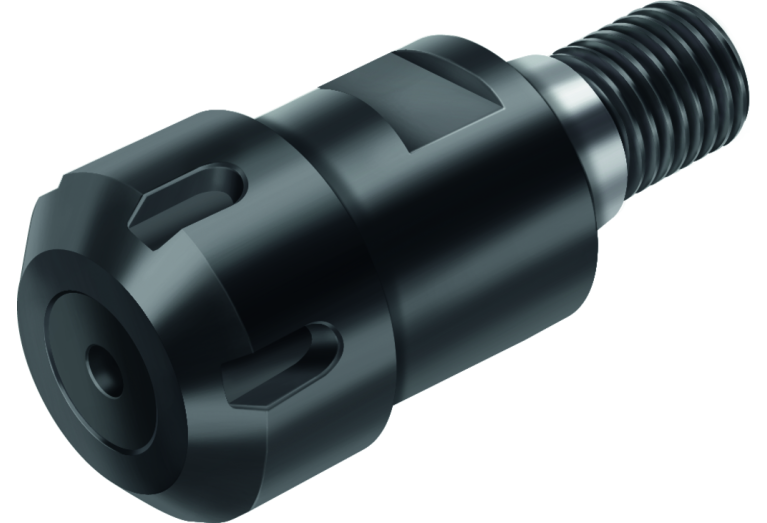

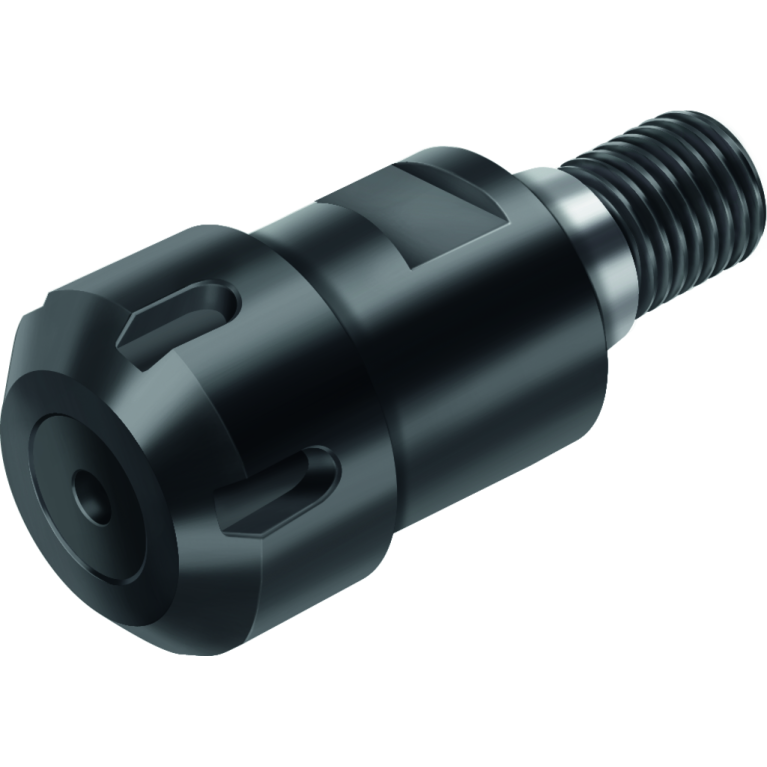

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK300.T18.030.06

AK300.T18.030.06

AK300.T18.030.06 AK300.T18.030.06 AK300.T18.030.06 AK300.T18.030.06

AK300.T18.030.06

Walter
Артикул: 5193067
В наличии
В корзину
Описание
Характеристики

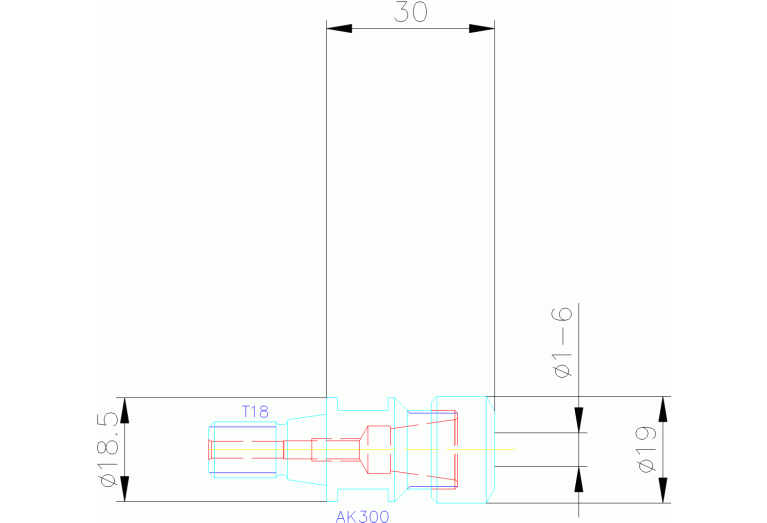

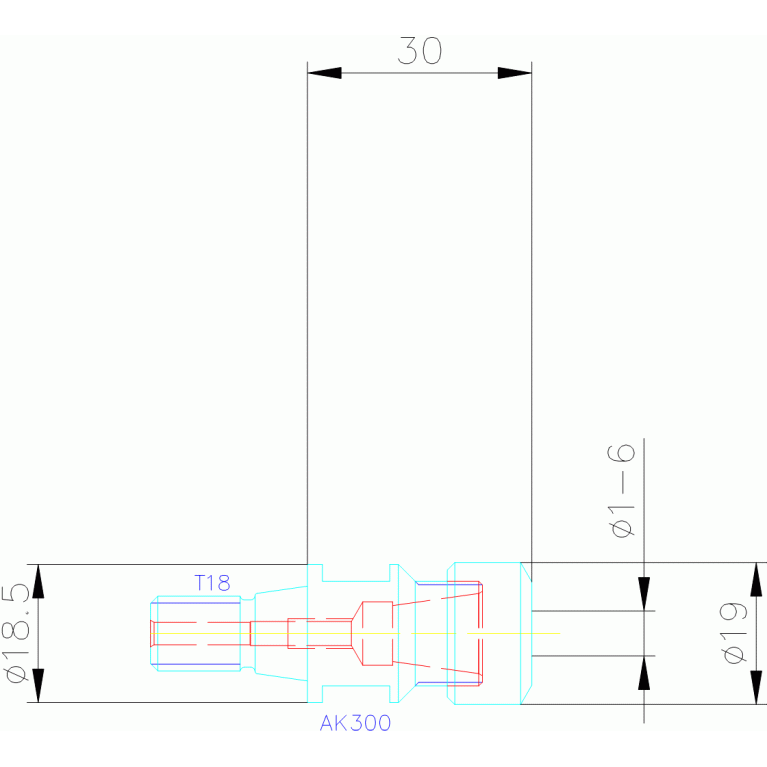

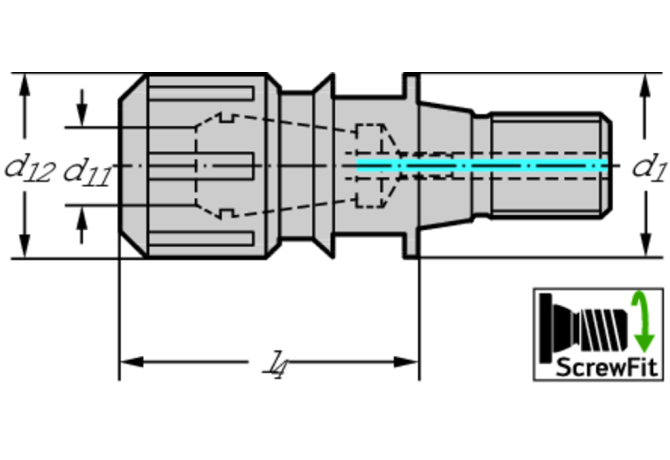

BD Body diameter
19 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0110
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
18.5 mm
DIN
SAW01800185
DLN Diameter lock nut
19 mm
FamilyProducts
ER collet chucks AK300.T
ID Technical product number
5193067
Interface codes
J6 / J61
ISO
SAW01C0180$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
30 mm
LF Functional length
23.4 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
0110
LOC-01 ISO
SZD02C0110****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01100285
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0180
LOC-03 DCONMS Diameter
18.5 mm
LOC-03 ISO
SAW01C0180$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW01800185
LPR Protruding length
30 mm
Name Identifying order number
AK300.T18.030.06
OAL Overall length
51 mm
RPMX Rotational speed maximum
50000 1/min
THSZMS Connection thread nominal size machine side
M10
WT Weight of item
0.063 kg
