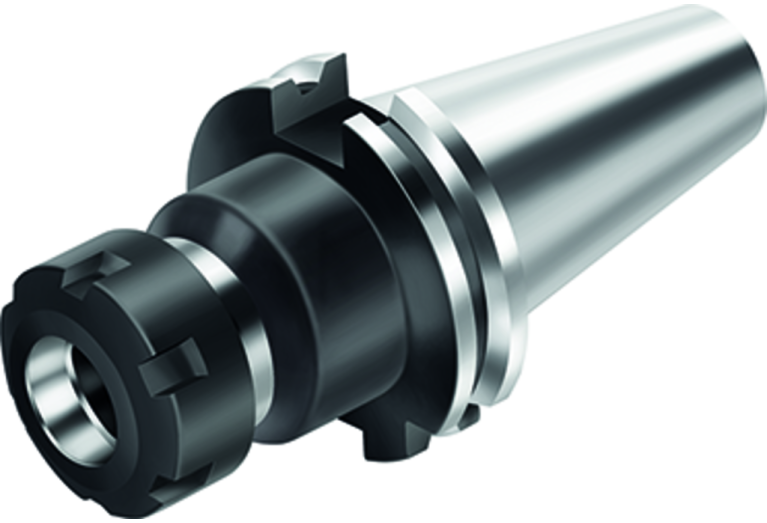

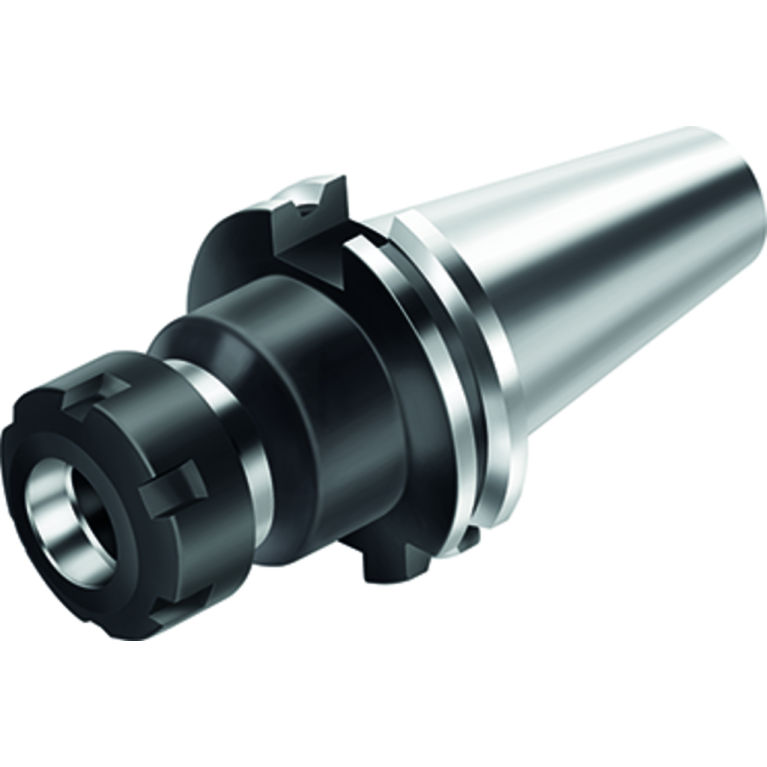

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK300.S40.100.ER16

AK300.S40.100.ER16

AK300.S40.100.ER16 AK300.S40.100.ER16 AK300.S40.100.ER16 AK300.S40.100.ER16

AK300.S40.100.ER16

Walter
Артикул: 6258789
В наличии
В корзину
Описание
Характеристики
BD Body diameter
28 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0160
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023

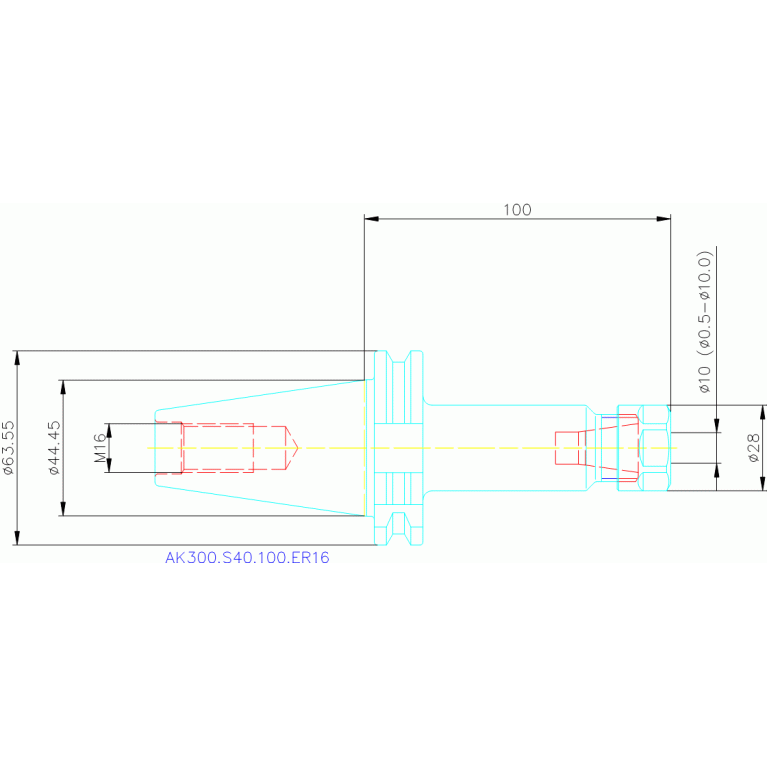

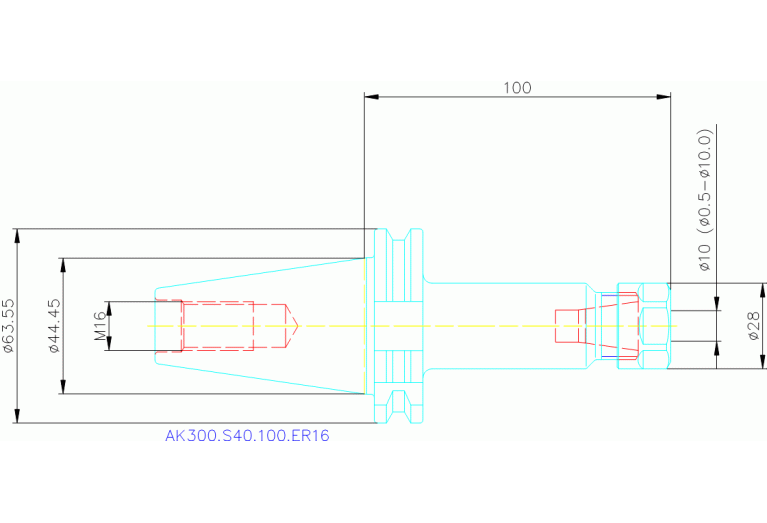

DF Flange diameter
63.55 mm
DIN
SKG04001085
DLN Diameter lock nut
28 mm
FamilyProducts
DIN 69871 A ER collet chuck AK300.S
ID Technical product number
6258789
Interface codes
J6 / J61
ISO
SKG10C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
80.9 mm
LF Functional length
89.4 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
0160
LOC-01 ISO
SZD02C0160****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01600285
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SKG steep taper shank
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
17 mm
LOC-03 ISO
SKG10C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001085
LPR Protruding length
100 mm
LS Shank length
68.4 mm
Name Identifying order number
AK300.S40.100.ER16
OAL Overall length
168.4 mm
RPMX Rotational speed maximum
12000 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO7388-1
THSZMS Connection thread nominal size machine side
M16
WT Weight of item
1.317 kg
